Removal And Installation: Notes

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the power supply mode of the electric motor switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sensors (steering wheel sensor, G and yaw rate sensor, and brake fluid pressure sensor) at one time. (Refer to MEASURES FOR DISCHARGED BATTERY  .)

Pre-removal Operation  Brake Fluid Draining.

Post-installation Operation  Brake Fluid Refilling and Air Bleeding (Refer to - On-vehicle Service, BLEEDING ). Hydraulic Unit Check (Refer to HYDRAULIC UNIT (HU) CHECK  ).

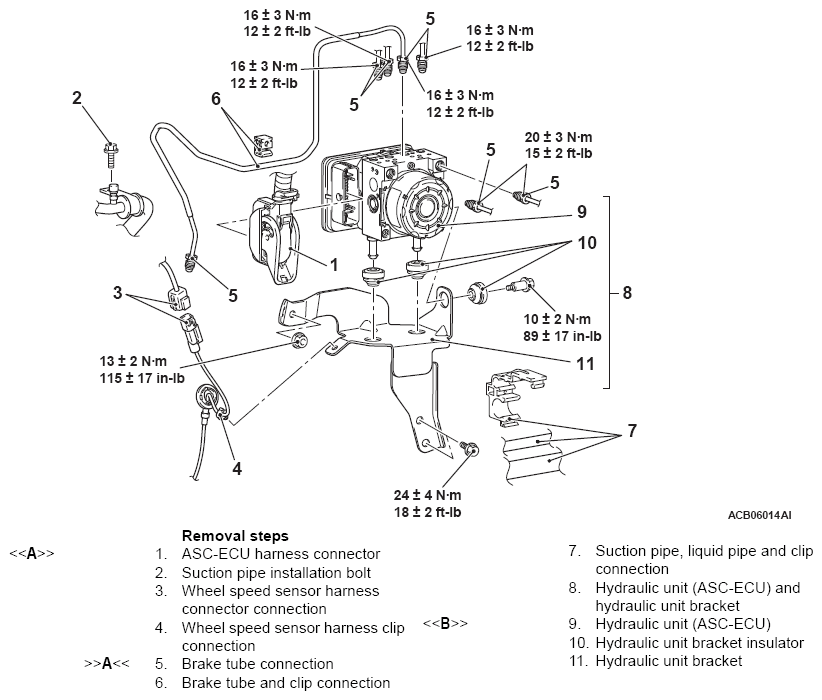

Fig 1: Removing/Installing Hydraulic Unit Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
