Removal And Installation: Notes

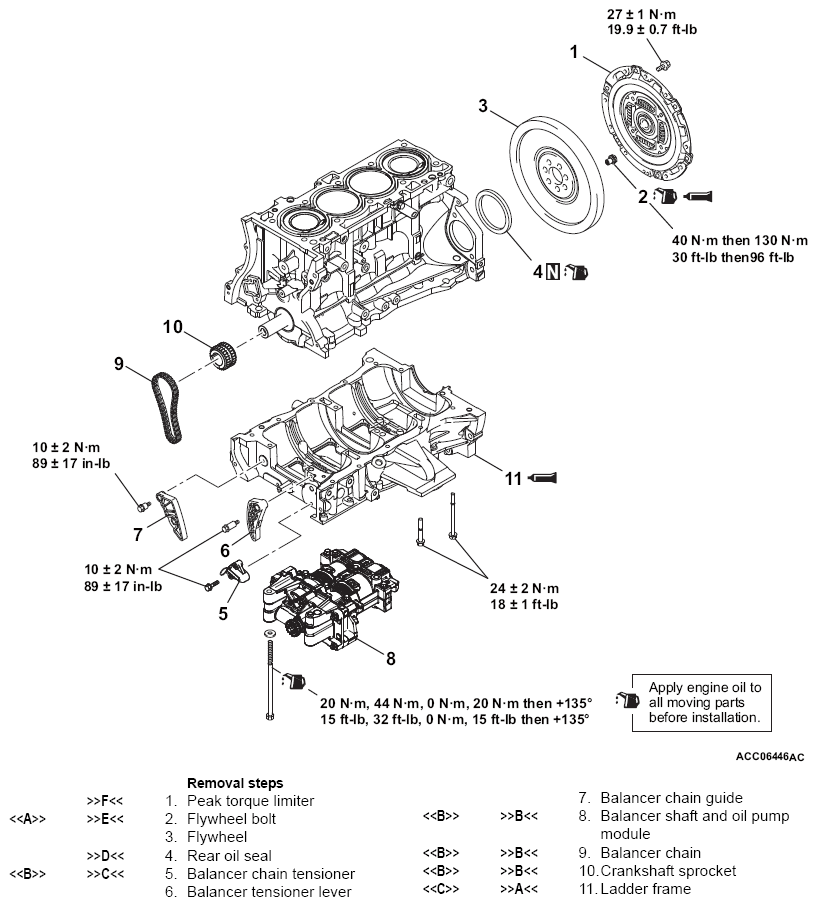

Fig 1: Removing/Installing Balancer Chain Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998781: Flywheel Stopper
• MB991614: Angle Gauge
• MD998718: Rear Oil Seal Installer
