Accessory Power Supply: Notes

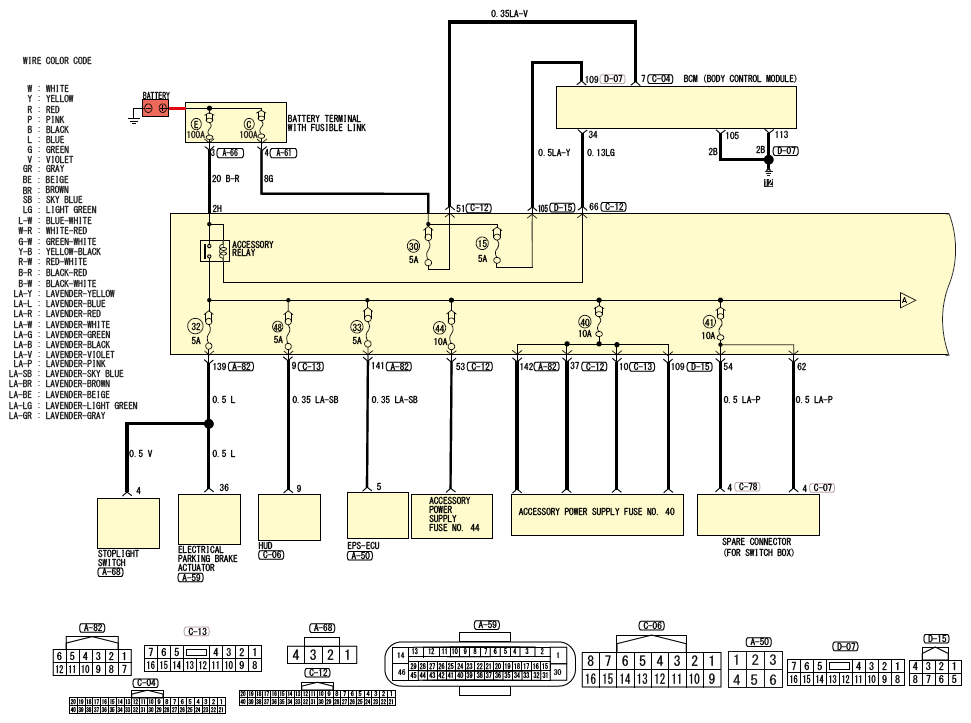

Fig 1: Accessory Power Supply Circuit Diagram (1 Of 2)
G16052973Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

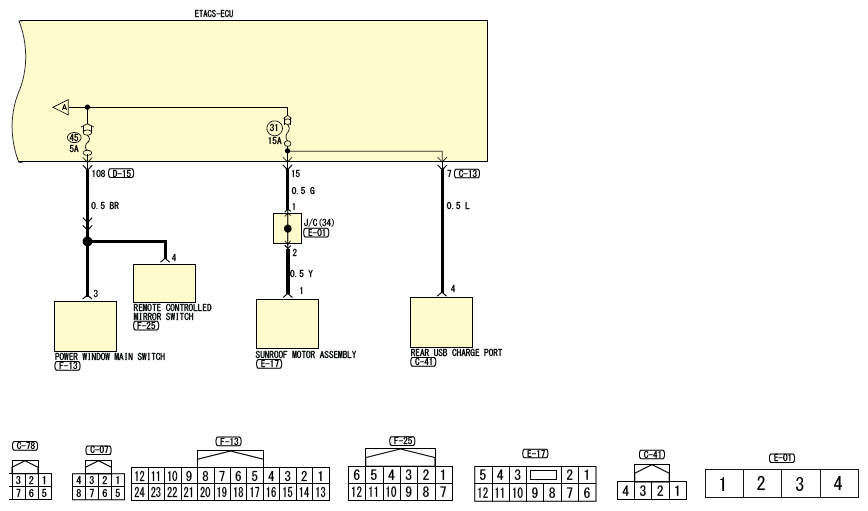

Fig 2: Accessory Power Supply Circuit Diagram (2 Of 2)
G16052974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

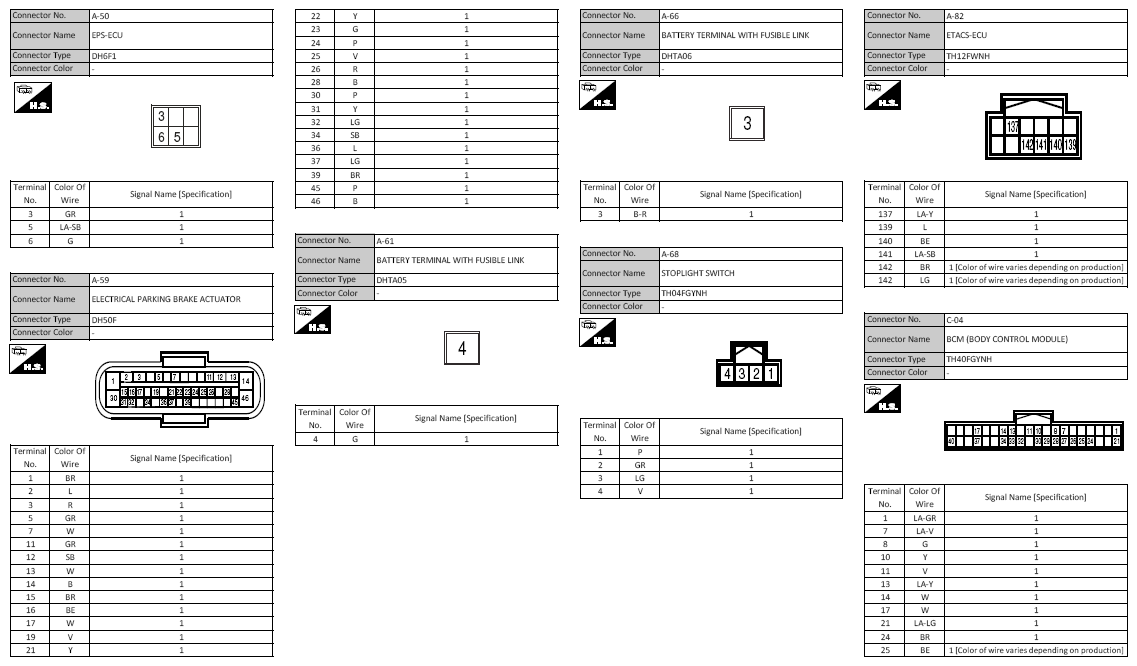

G16052975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

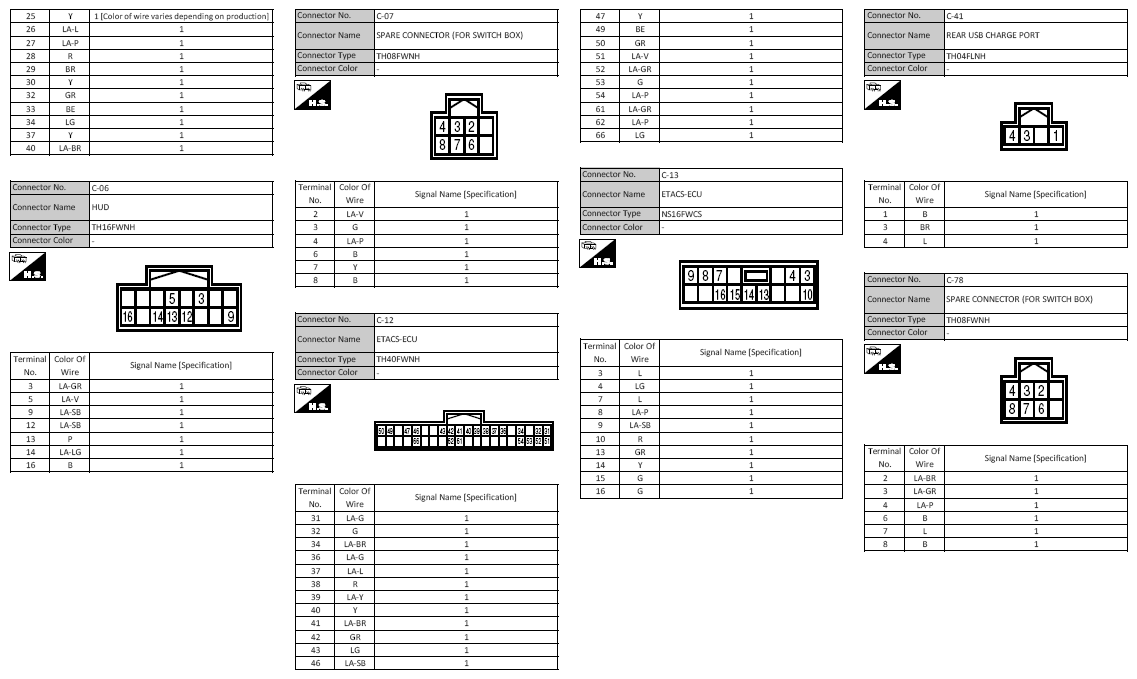

G16052976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

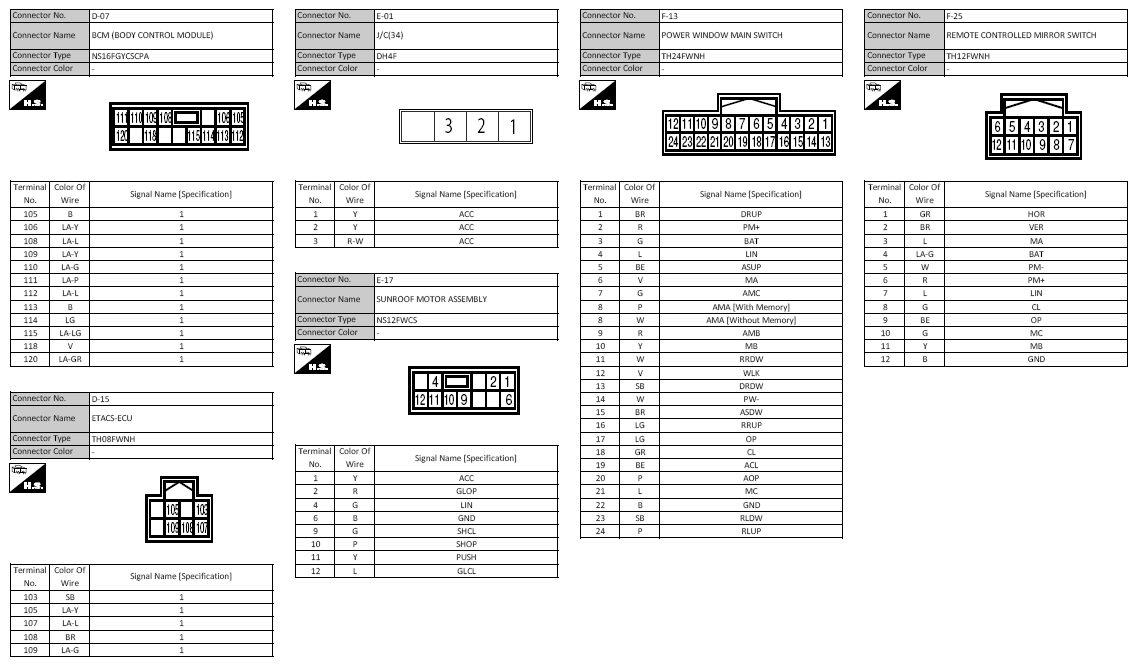

G16052977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)
