Ground - Engine Control Harness

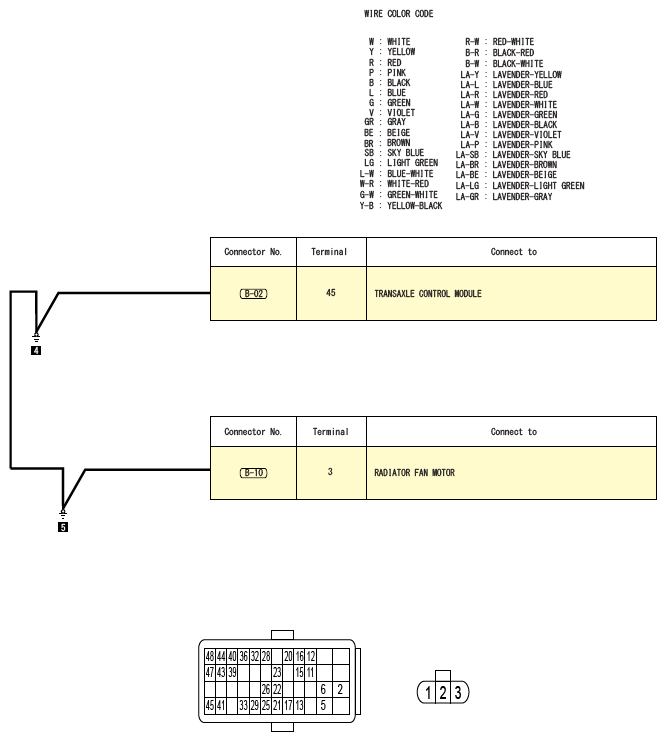

Fig 1: Ground Distribution Circuit Diagram - Engine Control Harness

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)
