Removal And Installation: Notes

CAUTION:

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the driveshaft assembly, make sure that the magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
When removing and installing the front wheel speed sensor, make sure that the sensor head at the end does not contact with surrounding parts to avoid damage.

Pre-removal operation

Engine Room Side Cover Removal (Refer to - Under Cover Removal and Installation REMOVAL AND INSTALLATION )
CVT Fluid Draining (Refer to - On-vehicle Service, CVT Fluid Change TRANSMISSION FLUID CHANGE )

Post-installation operation

Using Your Fingers, Press The Ball Joint Dust Cover to Check for A Crack or Damage.
CVT Fluid Refilling (Refer to - On-vehicle Service, CVT Fluid Change TRANSMISSION FLUID CHANGE )
Engine Room Side Cover Installation (Refer to - Under Cover Removal and Installation REMOVAL AND INSTALLATION )

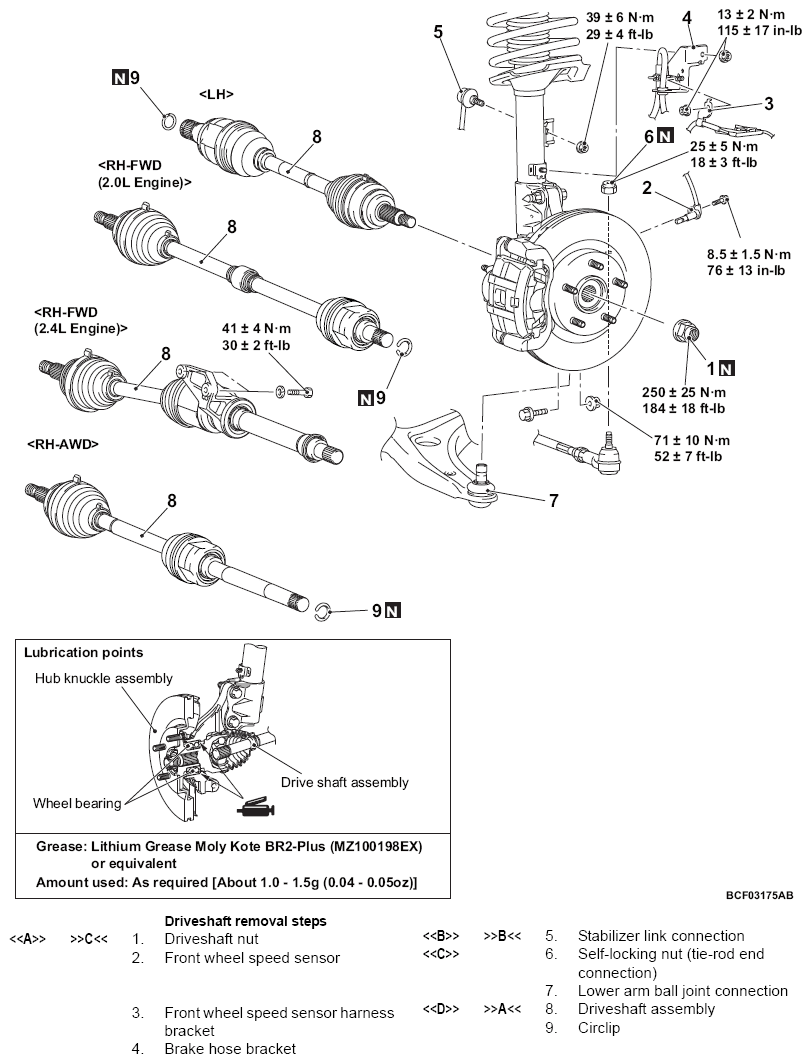

Fig 1: Removing/Installing Driveshaft Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
