Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to , Service Precautions SERVICE PRECAUTIONS and Side Airbag Module(s) SIDE-AIRBAG MODULE(S) .

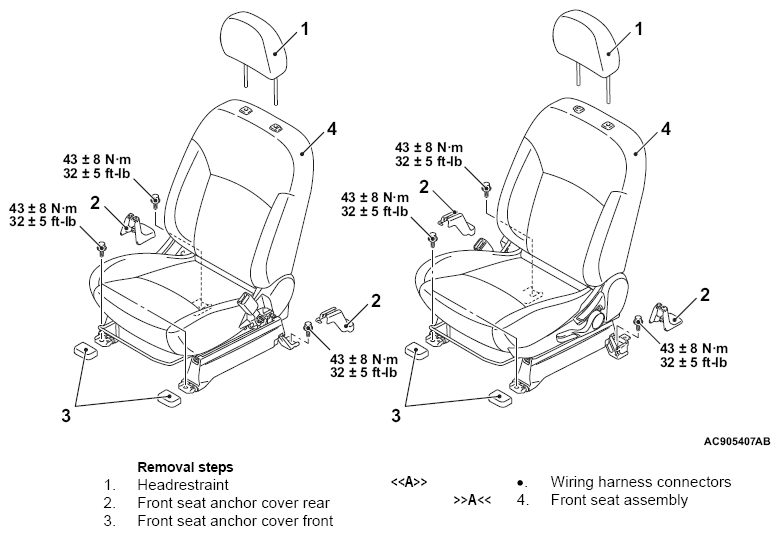

Fig 1: Removing/Installing Front Seat Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
