Total Toe-In

Standard value: 1 ± 2 mm (0.04 ± 0.08 inch)

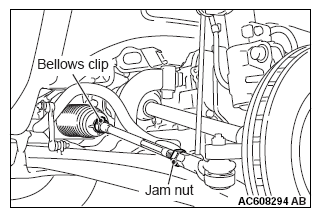

1. Adjust the total toe-in by undoing the bellows clip and jam nut, and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
2. Install the bellows clip and tighten the jam nut to the specified torque.

   Tightening torque: 52 ± 2 N.m (38 ± 1 ft-lb)

3. Confirm that the total toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard value (Refer to - On-vehicle Service, Steering Angle Check STEERING ANGLE CHECK ).

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
