Home › Mitsubishi › 2023 › Eclipse Cross LE › Repair and Diagnosis › Electrical › Charging Systems › Generator Assembly › Disassembly And Reassembly › Notes

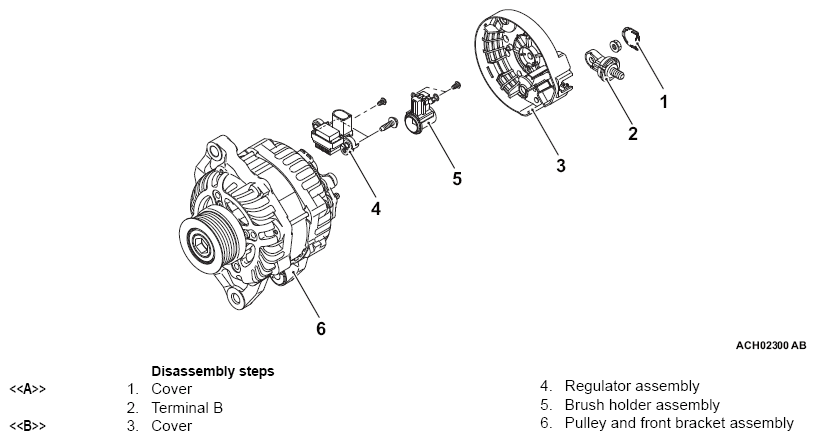

Disassembly And Reassembly: Notes

G16249513

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
