Removal And Installation: Notes

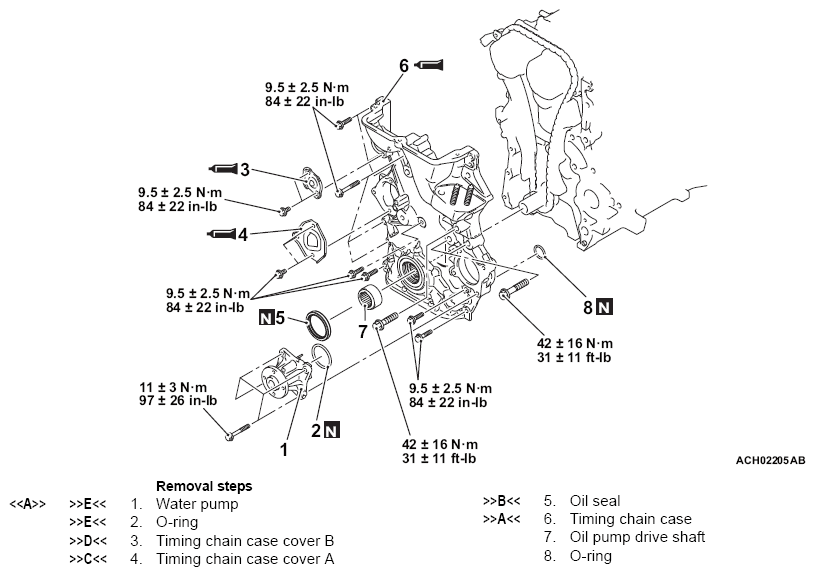

Fig 1: Removing/Installing Timing Chain Case Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998382: Crankshaft front oil seal installer
