FixVault
Home
›
Mitsubishi
›
2023
›
Eclipse Cross LE
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Engine Overhaul
›
Turbocharger Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

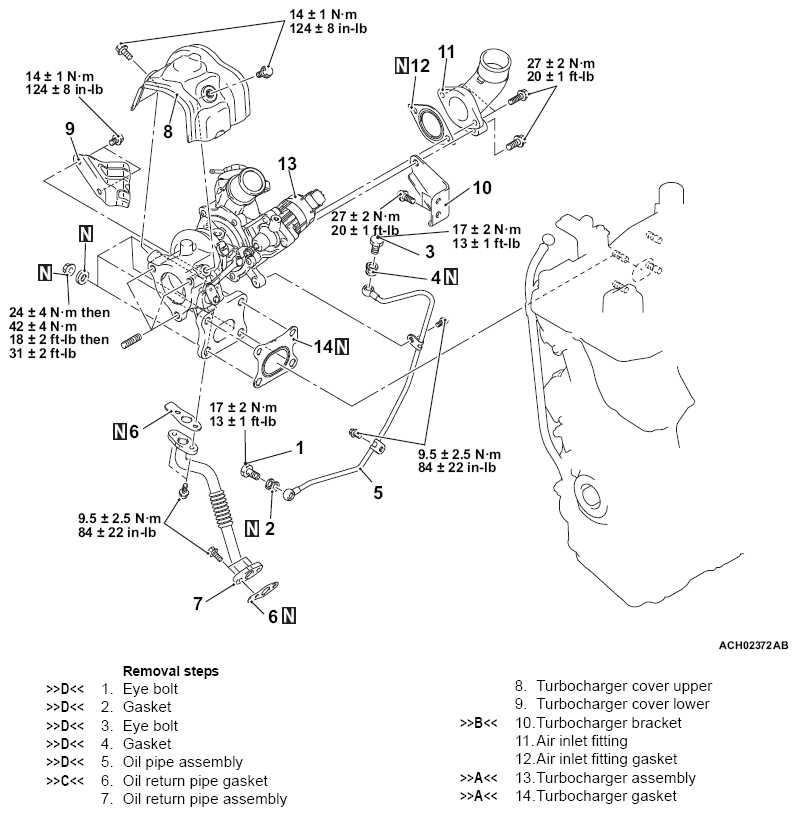

Fig 1: Removing/Installing Turbocharger Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
