Removal And Installation: Notes

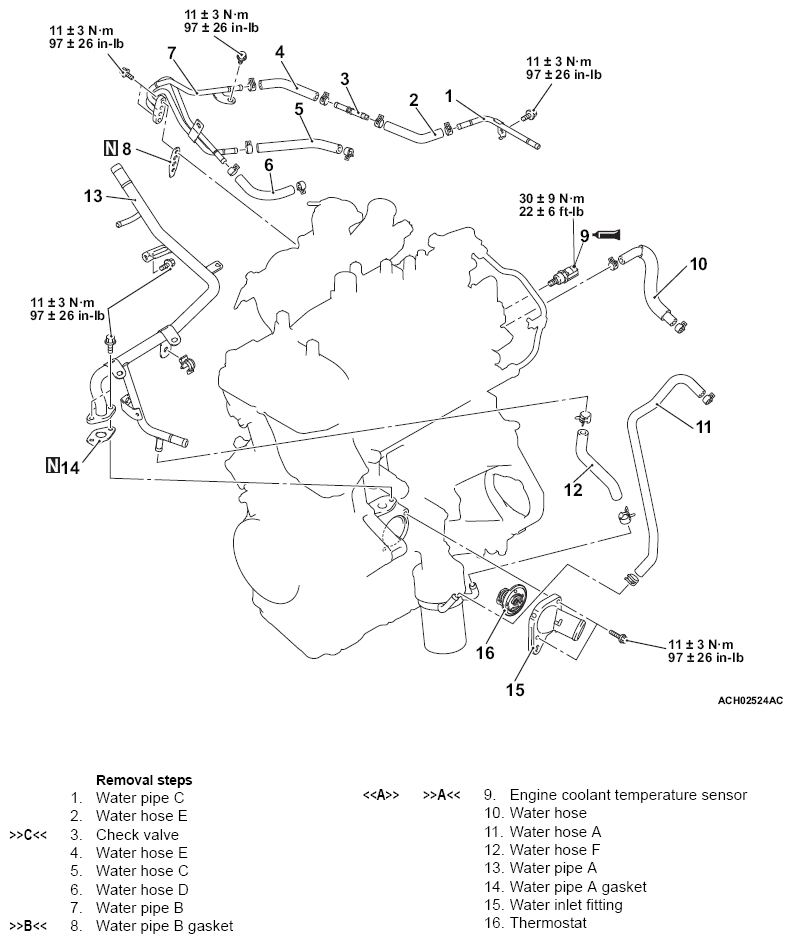

Fig 1: Removing/Installing Water Hose And Pipe Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992042: Engine coolant temperature sensor wrench
