Removal And Installation: Notes

Pre-removal Operation  Fuel Draining Rear Seat Cushion Assembly Removal (Refer to REAR SEAT ASSEMBLY ).

Post-installation Operation  Checking for Fuel Leaks. Rear Seat Cushion Assembly Installation (Refer to REAR SEAT ASSEMBLY ). Refilling Fuel

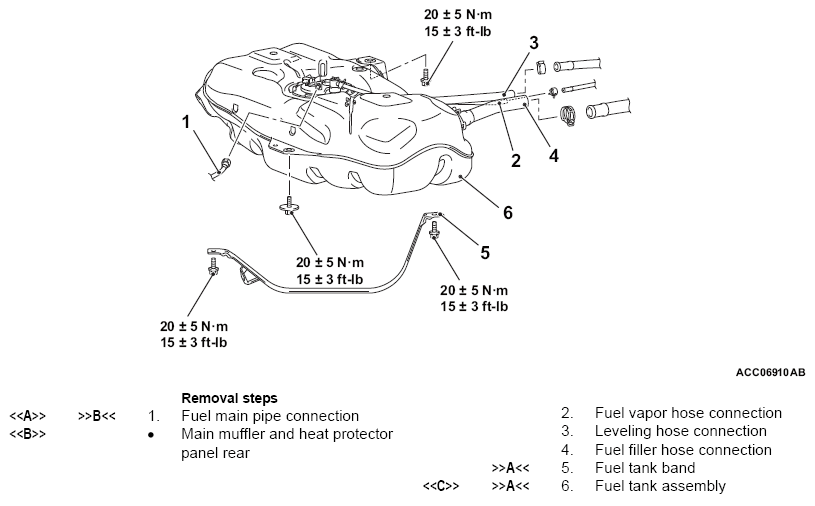

Fig 1: Removing/Installing Fuel Tank Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
