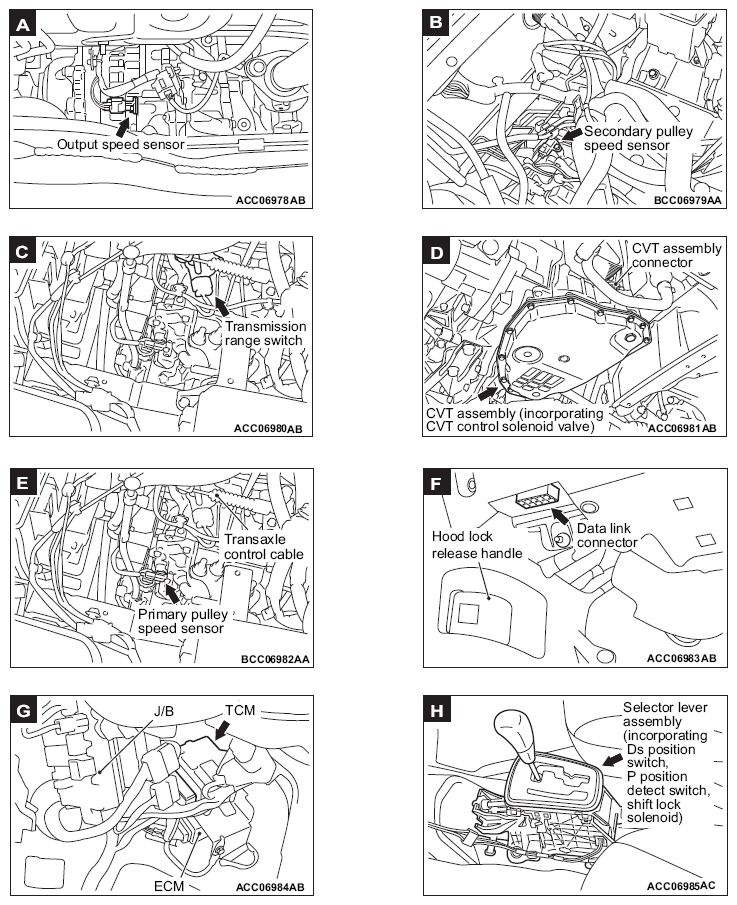

CVT Control Component Layout
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| CVT assembly (incorporating CVT control solenoid valve) |
D | Primary pulley speed sensor | E |
| Data link connector | F | Secondary pulley speed sensor | B |
| Ds position switch | H | Shift lock solenoid | H |
| Output speed sensor | A | Transaxle control module (TCM) | G |
| P position detect switch | H | Transmission range switch | C |
