Removal And Installation

Pre-removal and post-installation operation

Instrument Panel Cover Lower Removal and Installation (Refer to INSTRUMENT LOWER PANEL ).

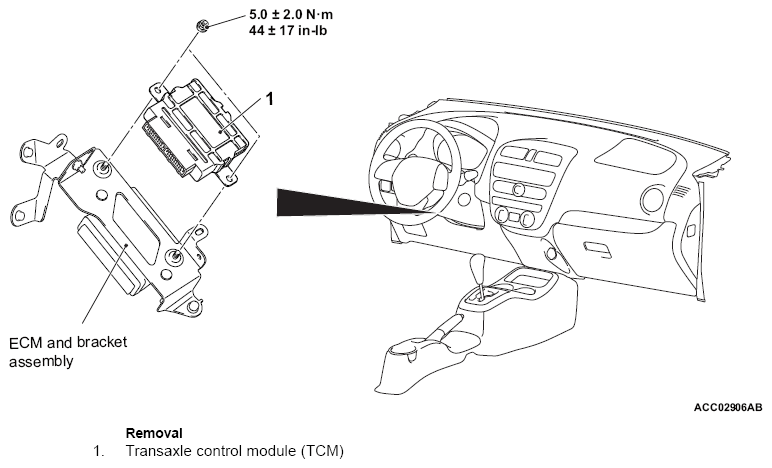

Fig 1: Removing/Installing Transaxle Control Module Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
