Removal And Installation: Notes

NOTE: ASC-ECU is located in the hydraulic unit.

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch "ON" or "LOCK" (OFF) position (vehicle information from ETACS-ECU is registered), always carry out the calibration of steering wheel sensor and G and yaw rate sensor (Refer to STEERING WHEEL SENSOR CALIBRATION  and G AND YAW RATE SENSOR CALIBRATION  ).

Pre-removal operation	Post-installation operation
Brake fluid draining.	Brake fluid refilling and air bleeding (Refer to, n-vehicle Service - BLEEDING ). Hydraulic unit check (Refer to WHEEL SPEED SENSOR OUTPUT CURRENT MEASUREMENT  ).

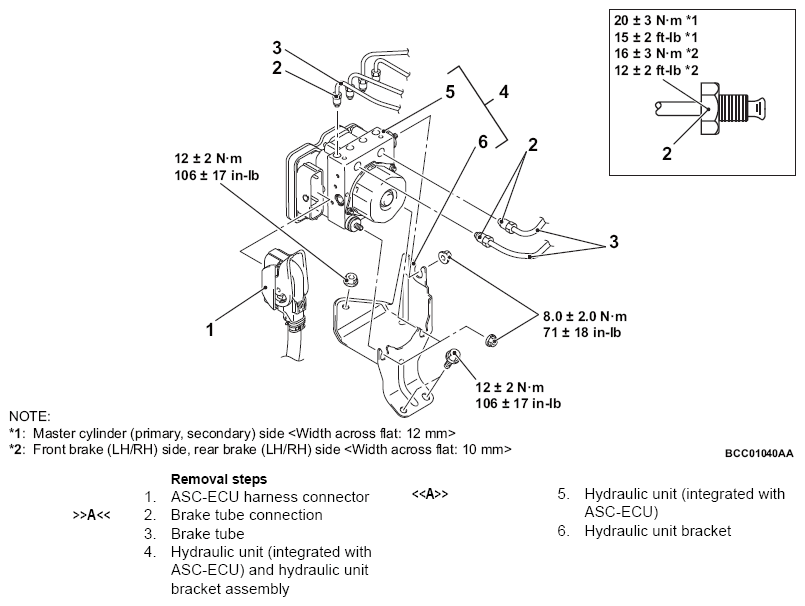

Fig 1: Removing/Installing Hydraulic Unit Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
