Engine Compartment

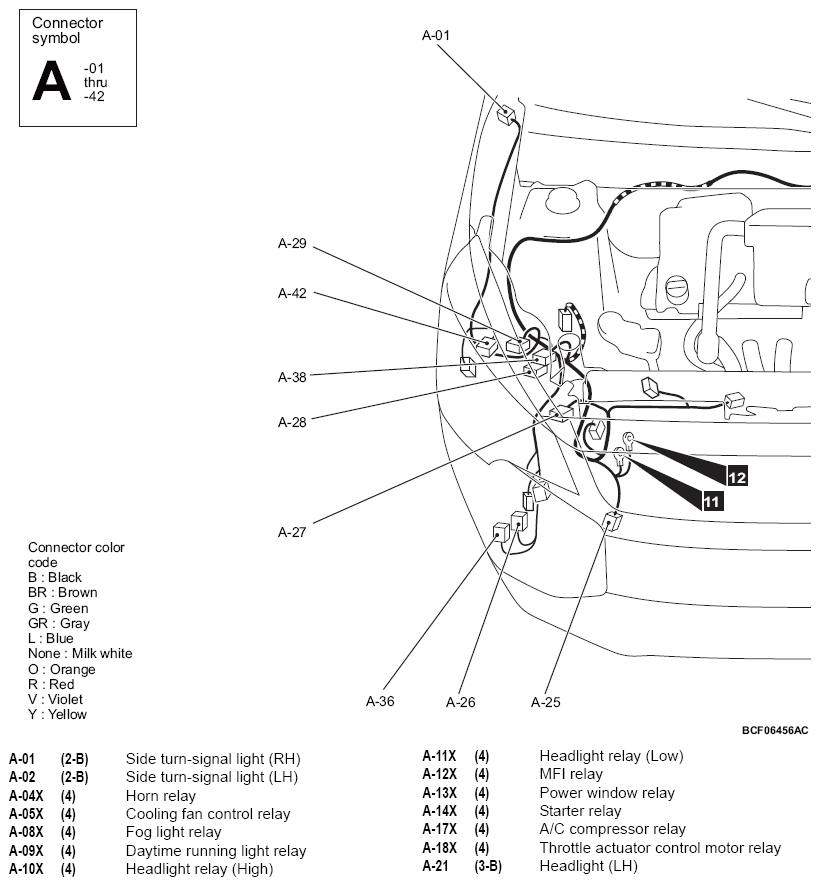

G15753778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

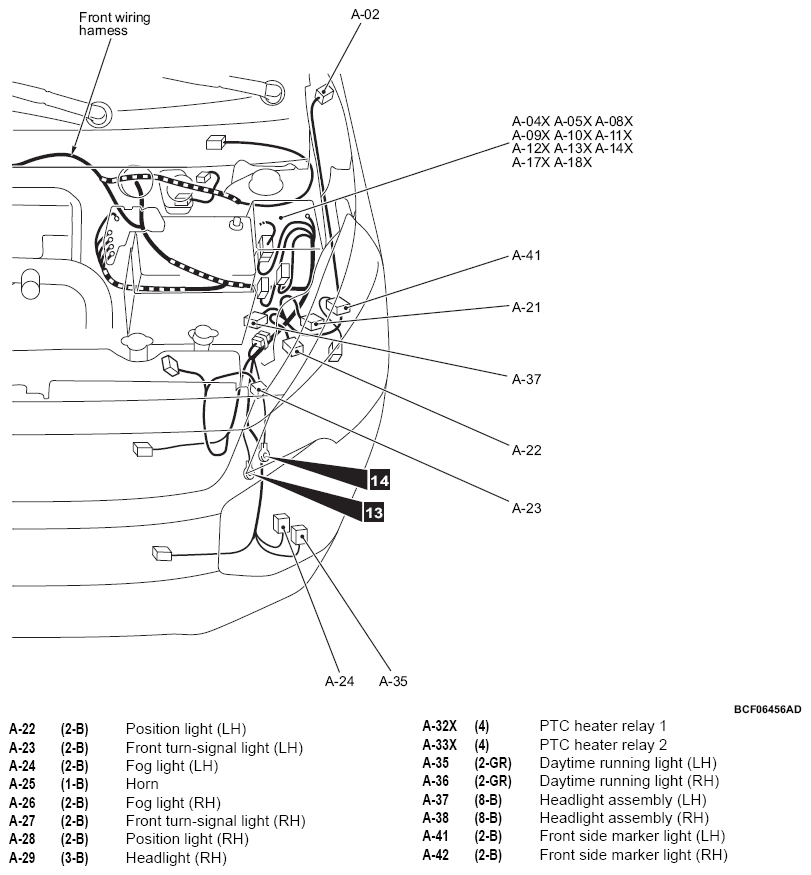

G15753779Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

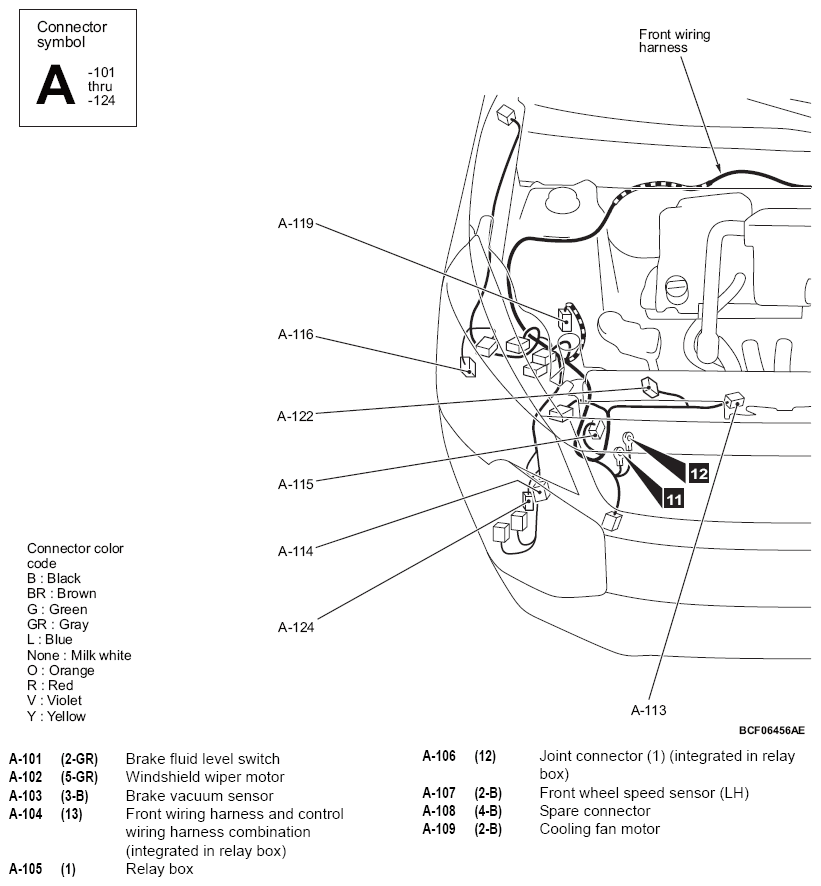

G15753780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

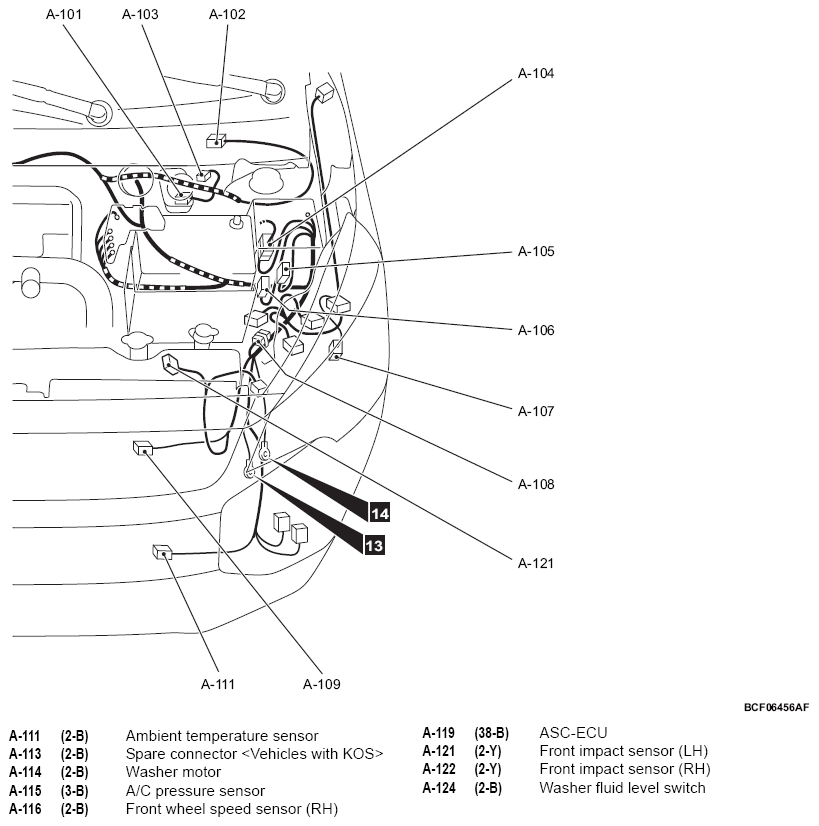

G15753781Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
