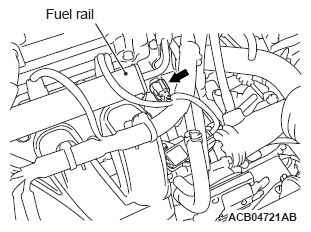

Removal And Installation

CAUTION:

When removing or installing the camshaft position sensor, be careful not to apply impact to the sensor.
Do not reuse the camshaft position sensor that has been dropped.

Pre-removal Operation	Post-installation Operation
Air Cleaner Assembly Removal (Refer to AIR CLEANER).	Air Cleaner Assembly Installation (Refer to AIR CLEANER).

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the removal and installation procedures, refer to WATER HOSE AND PIPE.
