Exploded View: Disassembly

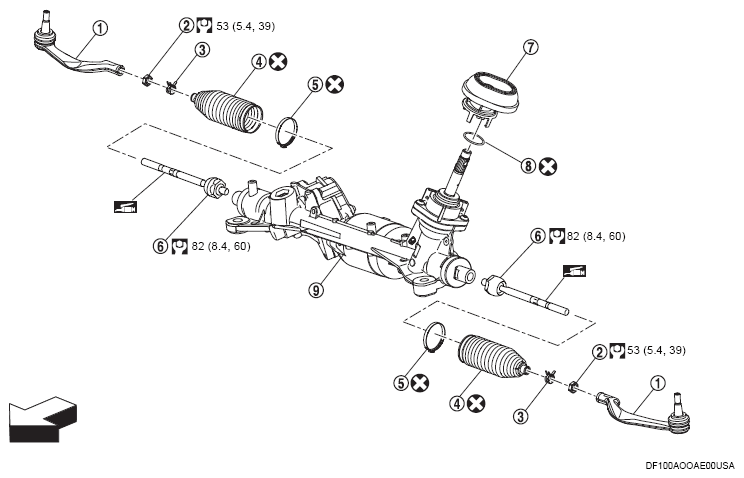

Fig 1: Disassembling Steering Gear And Linkage Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Outer socket
(2)	Outer socket lock nut
(3)	Boot clamp (small diameter)
(7)	Boot
(5)	Boot clamp (large diameter)
(6)	Inner socket
(7)	Fire wall seal
(8)	O-ring
(9)	Gear housing assembly
	: N.m (kg-m, ft-lb)
	: Apply Dow corning 111 or equivalent.
	: Always replace after every disassembly.

CAUTION: Never apply the grease to the surface between steering rack and inner socket screw part.
