Removal And Installation: Notes

Pre-removal operation  Drive Belt Removal (Refer to, CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Removal (Refer to, CRANKSHAFT PULLEY ) <2.4L ENGINE>.

Post-installation operation  Drive Belt Installation (Refer to, CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Installation (Refer to, CRANKSHAFT PULLEY ) <2.4L ENGINE>. Drive Belt Tension Check (Refer to, On-vehicle Service, DRIVE BELT TENSION CHECK ) <2.0L ENGINE>. Drive Belt Tension Check (Refer to, On-vehicle Service, DRIVE BELT TENSION CHECK ) <2.4L ENGINE>.

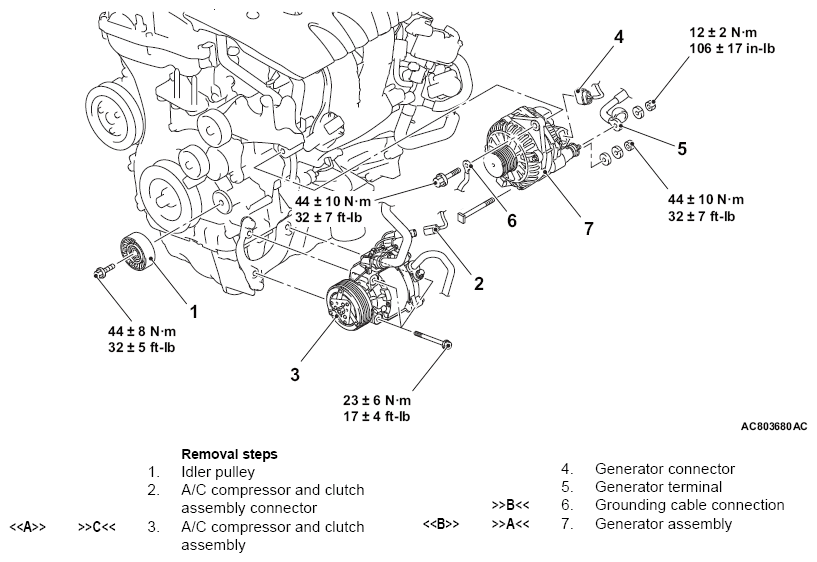

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
