Removal And Installation: Notes

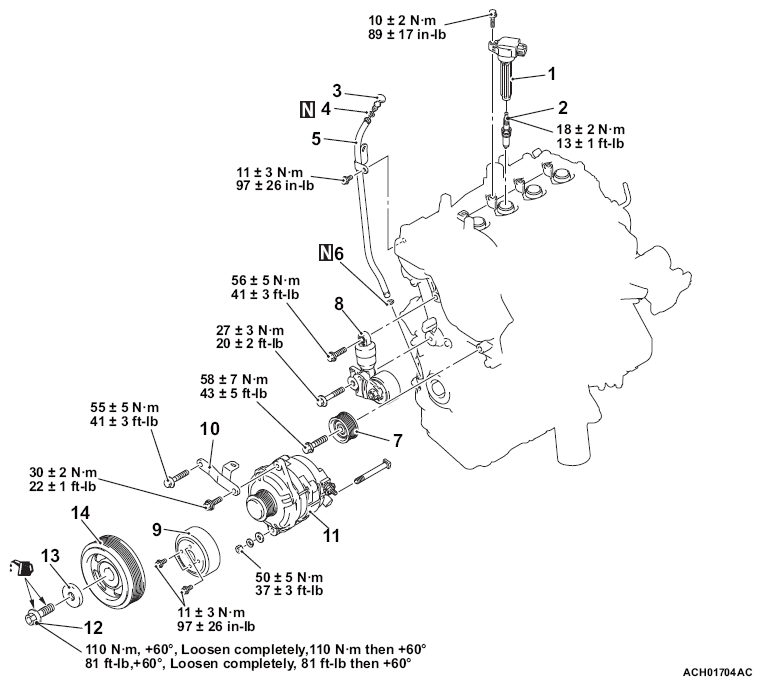

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification
| Removal steps | ||
| 1. Ignition coil | ||
| <<A>> | >>B<< | 2. Spark plug |
| 3. Oil dipstick | ||
| 4. O-ring | ||
| 5. Oil dipstick guide | ||
| 6. O-ring | ||
| 7. Idler pulley | ||
| 8. Auto tensioner | ||
| 9. Water pump pulley | ||
| 10. Generator bracket | ||
| 11. Generator | ||
| <<B>> | >>A<< | 12. Crankshaft pulley center bolt |
| >>A<< | 13. Crankshaft pulley washer | |
| >>A<< | 14. Crankshaft pulley |
Required Special Tools:
- MB991398: Spark plug wrench
- MB991883: Flywheel stopper
