Removal And Installation: Notes

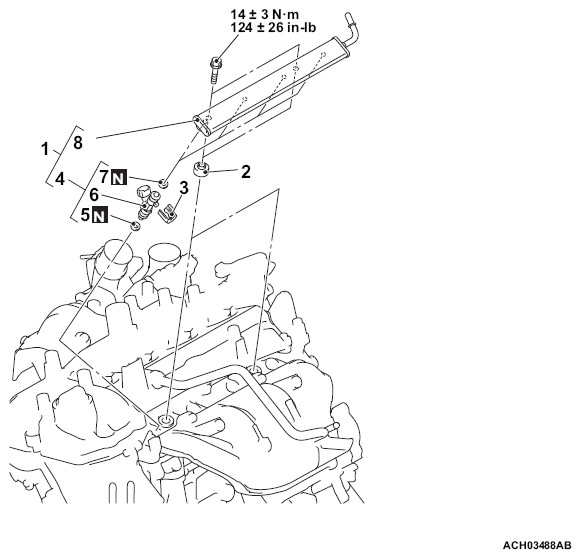

Fig 1: Removing/Installing Injector Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
<<A>>	>>E<<	1. fuel rail and fuel injector assembly
		2. fuel rail insulator
	>>D<<	3. Fuel injector support
	>>C<<	4. Fuel injector assembly
	>>B<<	5. O-ring
		6. Fuel injector
	>>A<<	7. O-ring
		8. fuel rail

Required Special Tools:
