Removal And Installation: Notes

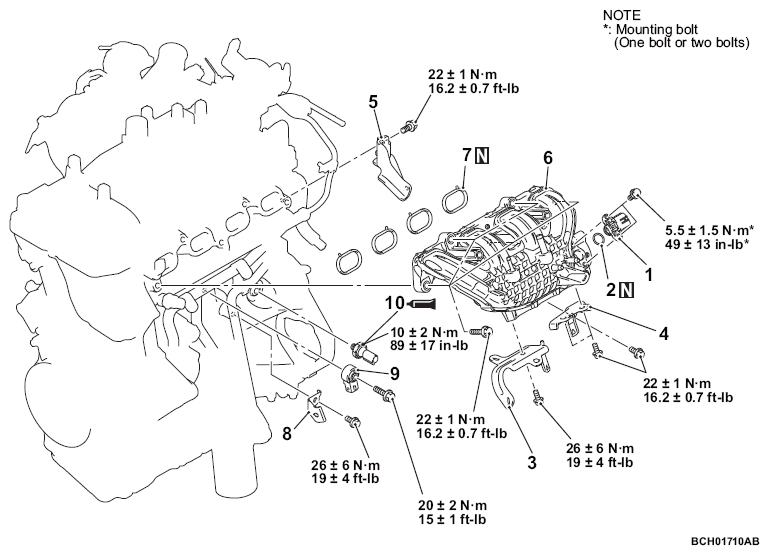

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
	>>D<<	1. Manifold absolute pressure sensor
		2. O-ring
		3. Harness bracket
	>>C<<	4. Intake manifold stay
		5. Throttle body stay
	>>C<<	6. Intake manifold
		7. Intake manifold gasket
		8. Harness bracket
	>>B<<	9. Knock sensor
<<A>>	>>A<<	10. Engine oil pressure switch

Required Special Tools:
