Removal And Installation: Notes

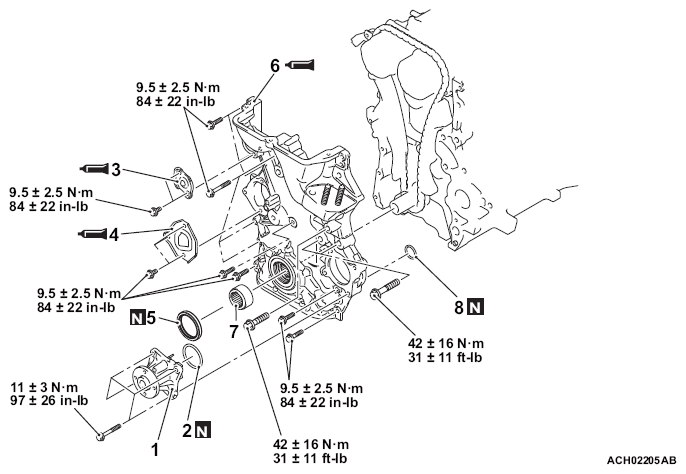

Fig 1: Removing/Installing Timing Chain Case Components Location With Torque Specification

G16565303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
	>>E<<	1. Water pump
	>>E<<	2. O-ring
	>>D<<	3. Timing chain case cover B
	>>C<<	4. Timing chain case cover A
	>>B<<	5. Oil seal
<<A>>	>>A<<	6. Timing chain case
		7. Oil pump drive shaft
		8. O-ring

Required Special Tools:

MD998382: Crankshaft front oil seal installer
