Removal And Installation: Notes

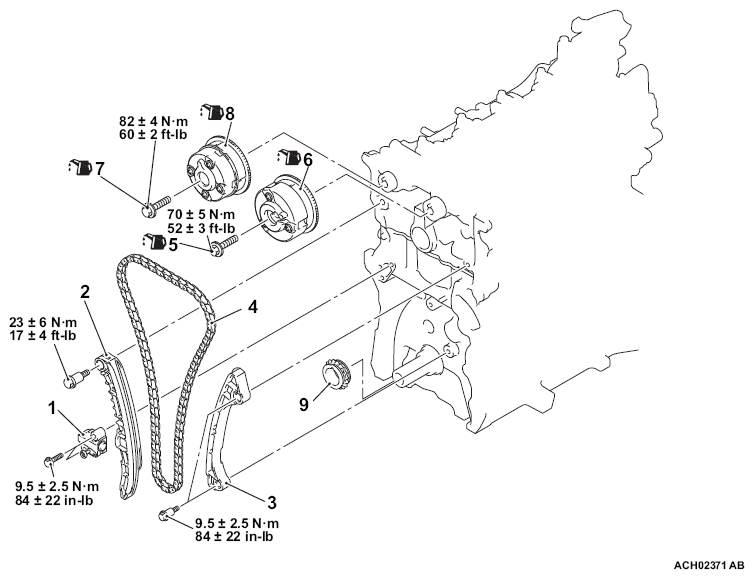

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
<<A>>	>>C<<	1. Timing chain tensioner assembly
		2. Tensioner lever assembly
		3. Timing chain guide assembly
	>>B<<	4. Timing chain
<<B>>	>>A<<	5. V.V.T. sprocket bolt (intake)
<<B>>	>>A<<	6. V.V.T. sprocket assembly (intake)
<<B>>	>>A<<	7. V.V.T. sprocket bolt (exhaust)
<<B>>	>>A<<	8. V.V.T. sprocket assembly (exhaust)
		9. Crank shaft sprocket
