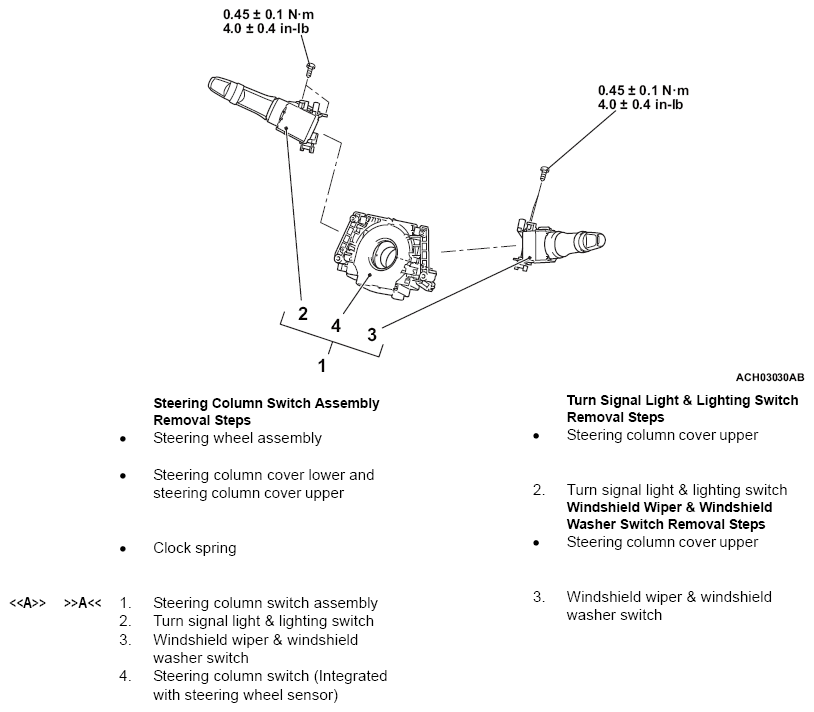

Removal And Installation: Notes
WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
- After the steering column switch assembly (integrated with steering wheel sensor) is installed, always calibrate the steering wheel sensor. (Refer to SENSOR CALIBRATION ).
