Disassembly And Reassembly: Notes

G16566228

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

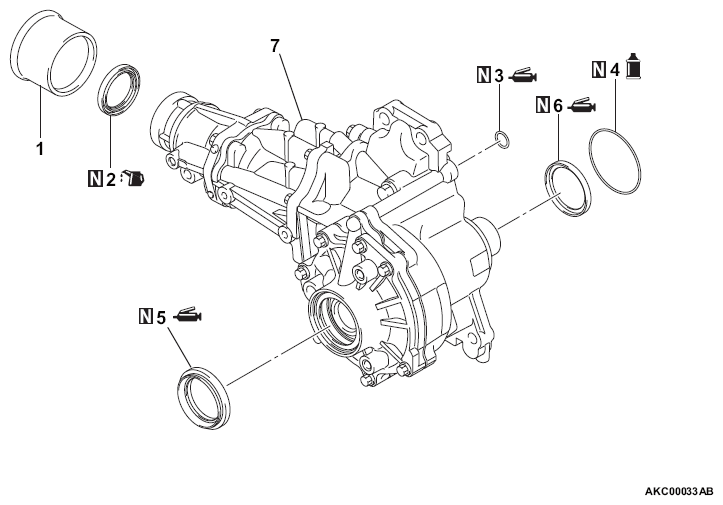

	Disassembly steps
	1. Dust seal guard
>>C<<	2. Oil seal
	3. O-ring
	4. O-ring
>>B<<	5. Oil seal
>>A<<	6. Oil seal
	7. Transfer

Required special tools:

MB990936: Installer adapter
MB992075: Handle
MB992142: Oil seal installer
MB992154: Oil seal installer
MD998812: Installer cap
