Removal And Installation: Notes
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER'S AIR BAG MODULE
to PASSENGER'S (FRONT) AIR BAG MODULE.

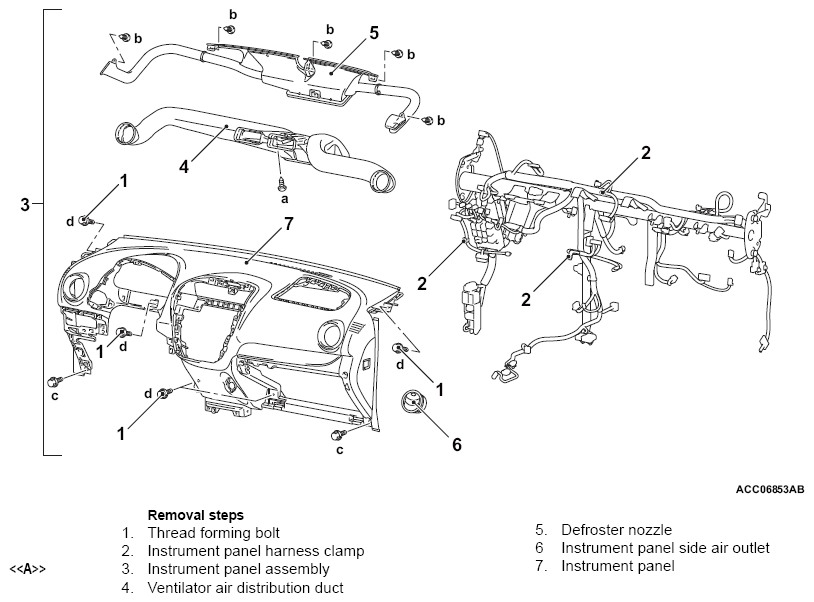

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the "Removal and Installation" and "Disassembly and Assembly information."
| Name | Symbol | Dimensions mm (screw diameter x screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 X 12 | - | |
| b | 5 X 12 | - | ||
| Bolt with washer | c | 6 X 12 | - | |
| d | 6 X 12 | - |
CAUTION:
- Refer to SERVICE PRECAUTIONS and PASSENGER'S (FRONT) AIR BAG MODULE before removing the passenger's (front) air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
Pre-removal and Post-installation Operation
- Front Pillar Trim Removal and Installation (Refer to TRIMS )
- Glove Box Removal and Installation (Refer to GLOVE BOX )
- Instrument Panel Driver Side Under Cover, Instrument Panel Cover Lower Removal and Installation (Refer to INSTRUMENT LOWER PANEL )
- Automatic A/C Controller Assembly Removal and Installation (Refer to HEATER CONTROL UNIT )
- Floor Console Assembly Removal and Installation (Refer to FLOOR CONSOLE ASSEMBLY )
- Radio and CD Player Assembly Removal and Installation (Refer to RADIO AND CD PLAYER ) <Vehicles with radio and CD player>
- Smartphone Link Display Audio Removal and Installation (Refer to MULTIVISION DISPLAY ) <Vehicles with smartphone link display audio>
- Combination Meter Removal and Installation (Refer to REMOVAL AND INSTALLATION )
