Combination Switch Reading Function

Description

• BCM reads the status of the combination switch at 10 ms intervals normally.

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• BCM operates as follows and judges the status of the combination switch.
  • It operates the transistor on INPUT side in the following order: OUTPUT 6 → 5 → 4 → 3 → 2 → 1, and outputs voltage waveform.
  • The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT side if any (1 or more) switches are ON.
  • It reads this change of the voltage as the status signal of the combination switch.

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced as follows: INPUT 1 - 6 to "(A) - (F)" and OUTPUT 1 - 6 to "(1)- (6)".

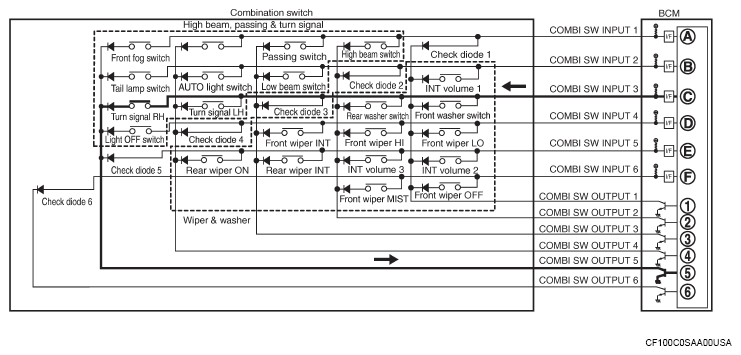

Example 1: When a switch (Turn signal RH) is turned ON

• The circuit between INPUT 3 (C) and OUTPUT 5 (5) is formed when the Turn signal RH is turned ON.

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  NOTE: AUTO light switch is not applicable. (For Canada models)
• BCM detects the combination switch status signal "(C) (5)" when the signal of INPUT 3 is input to OUTPUT 5.
• BCM judges that the Turn signal RH is ON when the signal "(C) (5)" is detected.

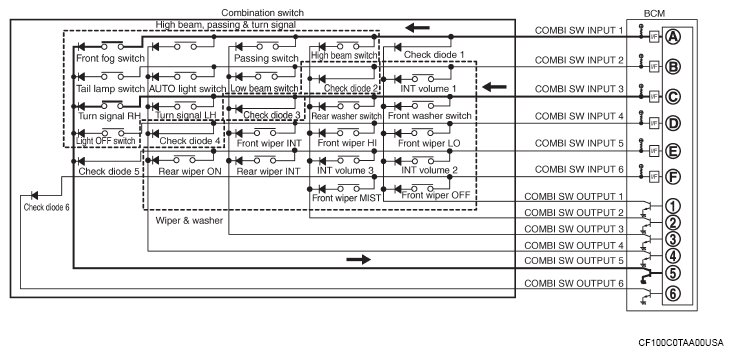

Example 2: When some switches (Front fog switch, Turn signal RH) are turned ON

• The circuits between INPUT 1 (A) and OUTPUT 5 (5) and between INPUT 3 (C) and OUTPUT 5 (5) are formed when the Front fog switch and Turn signal RH are turned ON.

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  NOTE: AUTO light switch is not applicable. (For Canada models)
• BCM detects the combination switch status signal "(A) (C) (5)" when the signals of INPUT 1 and INPUT 3 are input to OUTPUT 5.
• BCM judges that the Front fog switch and Turn signal RH are ON when the signal "(A) (C) (5)" is detected.
  NOTE: BCM judges lighting switch is in AUTO position when light OFF switch is ON. (For Canada models)
