Exploded View

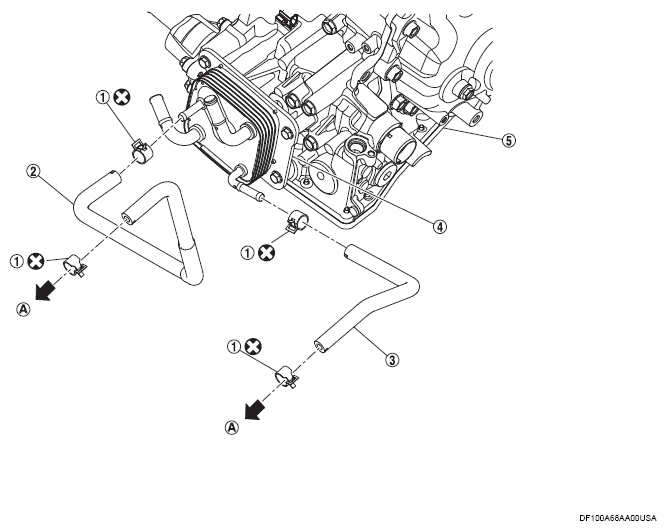

Fig 1: Removing/Installing CVT Fluid Cooler System Components Location With Torque Specification
G16071491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Hose clamp
(2) CVT fluid cooler hose A
(3) CVT fluid cooler hose B
(4) CVT fluid warmer
(5) Transaxle assembly
(6) To radiator
: Always replace after every disassembly.
