Automatic Transmission
›
Removal And Installation
›
TCM
›
Exploded View
Exploded View

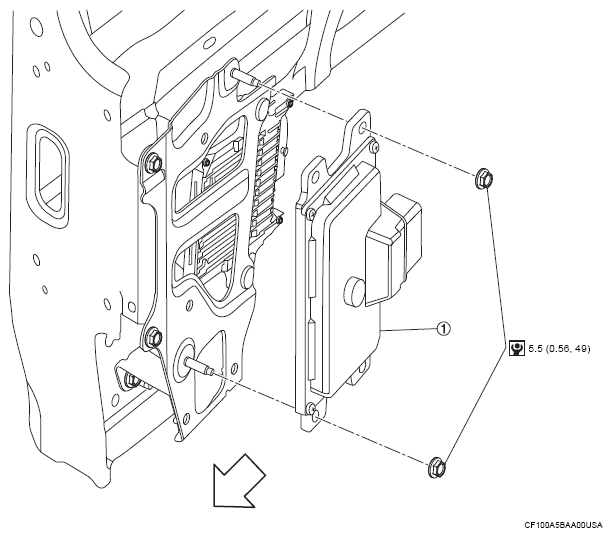

Fig 1: Removing/Installing TCM Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1)
TCM
: N.m (kg-m, in-lb)
: Vehicle front
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
