Exploded View

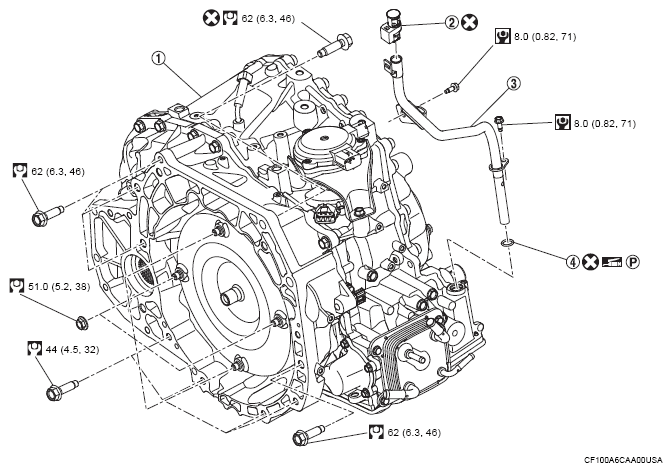

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Apply petroleum jelly
	: Always replace after every disassembly.
