Removal And Installation: Notes

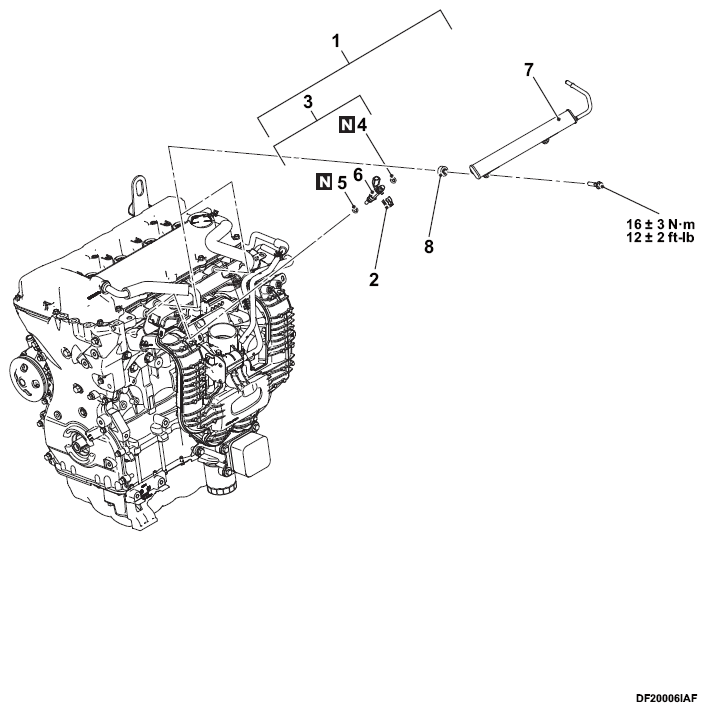

Fig 1: Removing/Installing Fuel Injector Components Location With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

			Removal steps
<<A>>	>>E<<	1.	Fuel rail and fuel injector assembly
	>>D<<	2.	Fuel injector support
	>>C<<	3.	Fuel injector assembly
	>>B<<	4.	O-ring
	>>A<<	5.	O-ring
		6.	Fuel injector
		7.	Fuel rail
		8.	Fuel injector insulator

Required Special Tool :
