Removal And Installation: Notes

CAUTION:

When removing or installing the knock sensor, be careful not to apply impact to the sensor .
Do not reuse the knock sensor that has been dropped .

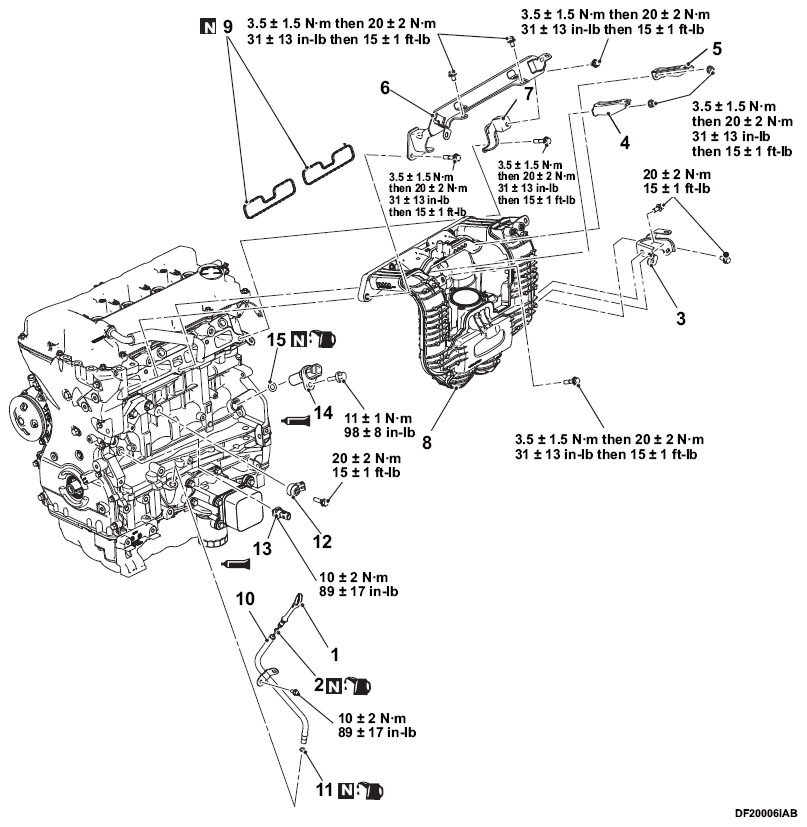

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specifications

G16754894

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

			Removal steps
		1.	Oil dipstick
		2.	O-ring
	>>D<<	3.	Inlet manifold stay
	>>D<<	4.	Fuel tube protector RH
	>>D<<	5.	Fuel tube protector LH
	>>D<<	6.	Fuel tube protector
	>>D<<	7.	Fuel tube protector stay
	>>D<<	8.	Inlet manifold
		9.	Inlet manifold gasket
		10.	Oil dipstick guide
		11.	O-ring
	>>C<<	12.	Knock sensor
<<A>>	>>B<<	13.	Engine oil pressure switch
	>>A<<	14.	Crankshaft position sensor
		15.	O-ring

Required Special Tool :

MB992118: Oil pressure switch wrench (MB992118)
