Removal And Installation: Notes

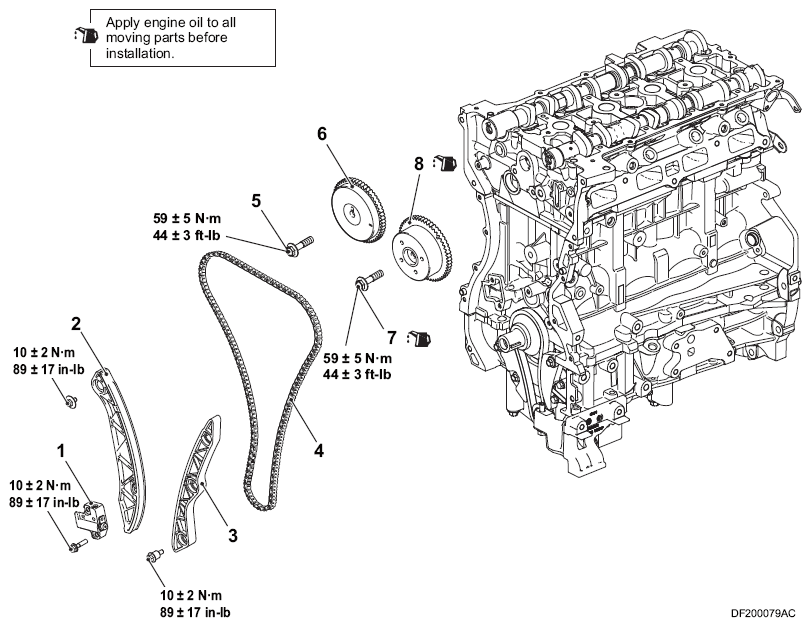

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

			Removal steps
<<A>>	>>D<<	1.	Timing chain tensioner
	>>C<<	2.	Tensioner lever
	>>C<<	3.	Timing chain guide
	>>C<<	4.	Timing chain
<<B>>	>>B<<	5.	Exhaust camshaft sprocket bolt
	>>B<<	6.	Exhaust camshaft sprocket
<<C>>	>>A<<	7.	Inlet V.V.T. sprocket bolt
	>>A<<	8.	Inlet V.V.T. sprocket assembly
