Section 161 (Cruise Control System)
›
Basic Inspection
›

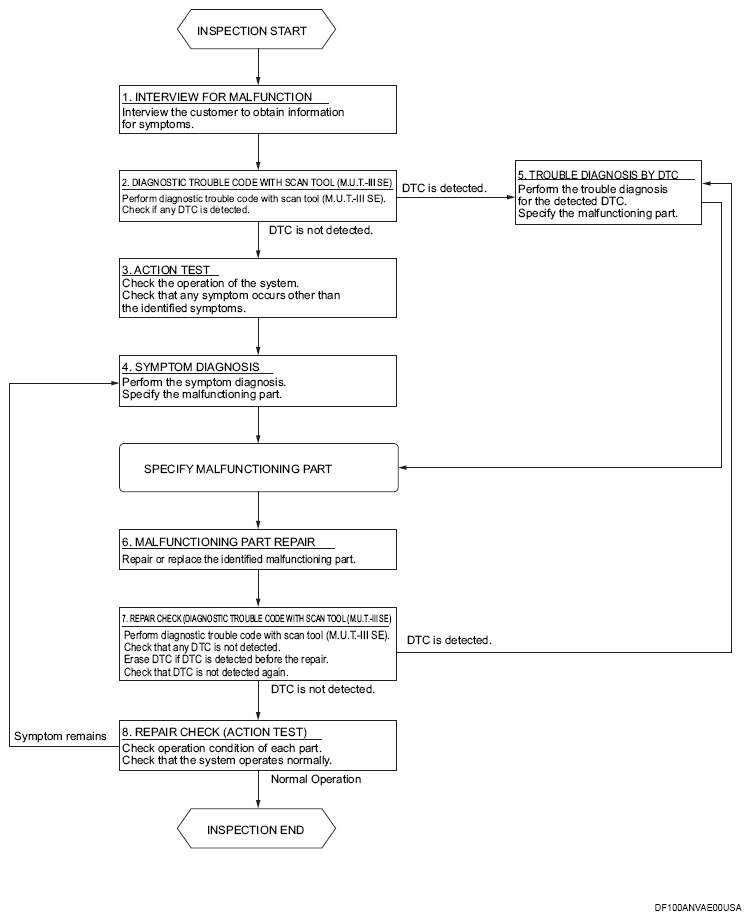

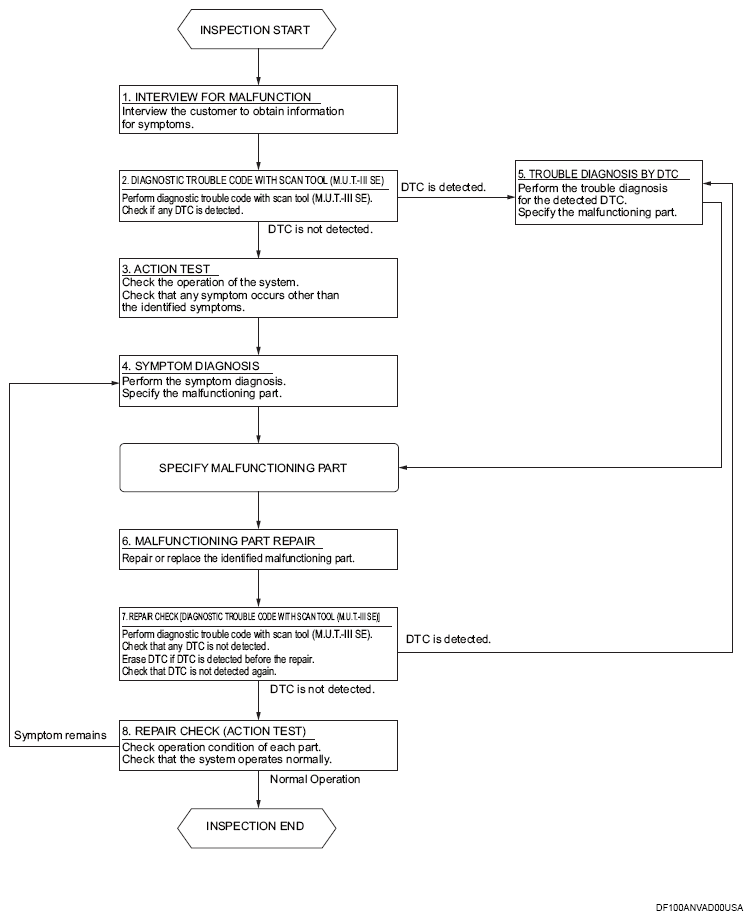

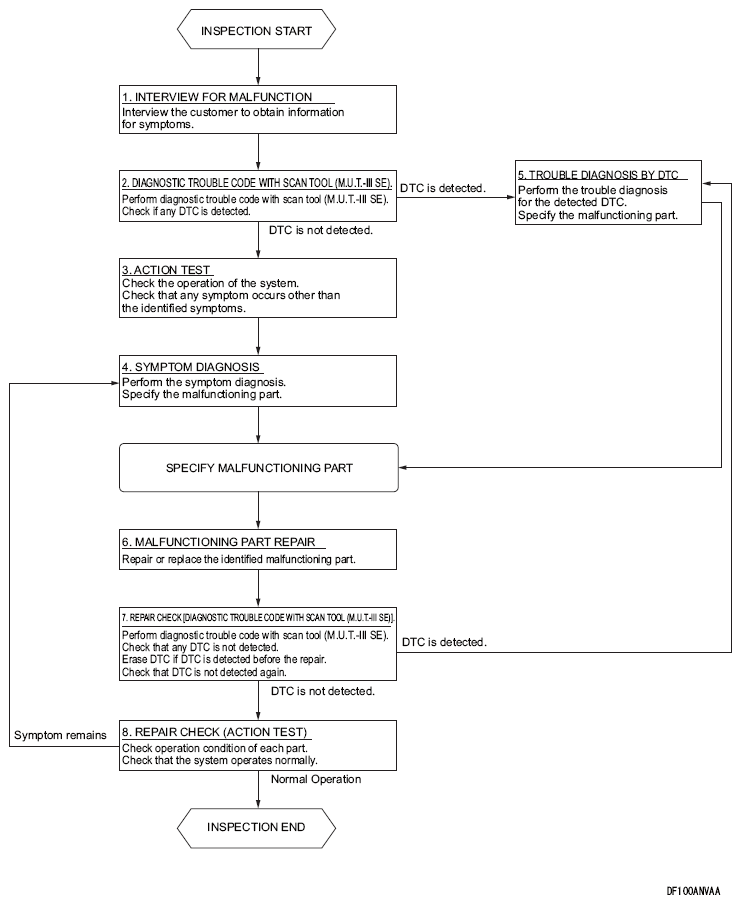

Diagnosis And Repair Work Flow
›
Work Flow
›
Overall Sequence
Overall Sequence
WARNING:
This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
