Switch Name And Function
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

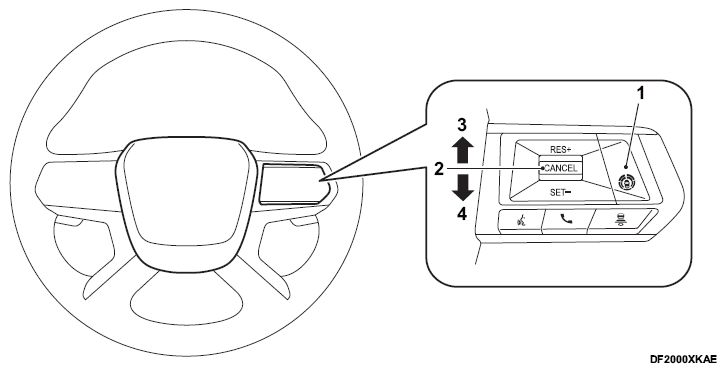

| No. | Description | Function |
|---|---|---|
| (1) | ACC MAIN switch | Master switch to activate the system (Press for more than 1.5 seconds) |
| (2) | CANCEL switch | Deactivates system without erasing set speed |
| (3) | RES+ switch | Resumes set speed or increases speed incrementally.
|
| (4) | SET- switch | Sets desired cruise speed or reduces speed incrementally
NOTE:
The minimum set speed is 30 km/h (20 MPH)
|

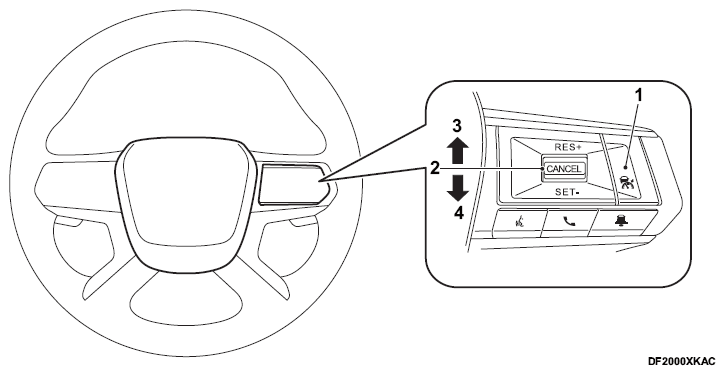

| No. | Description | Function |
|---|---|---|
| (1) | MI-PILOT MAIN switch | Master switch to activate the system (Press for more than 1.5 seconds) |
| (2) | CANCEL switch | Deactivates system without erasing set speed |
| (3) | RES+ switch | Resumes set speed or increases speed incrementally.
|
| (4) | SET- switch | Sets desired cruise speed or reduces speed incrementally.
|
