Switch Name And Function
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

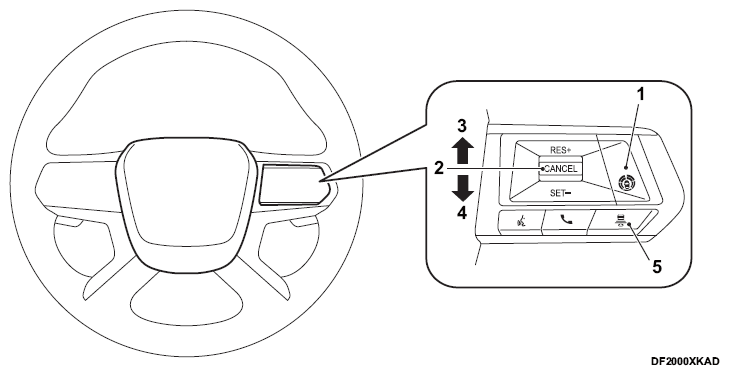

 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
| No. |
Switch name |
Description |
| 1 |
ACC MAIN switch |
ACC MAIN switch to activate the system (Press for less than 1.5 seconds) |
| 2 |
CANCEL switch |
Pressing the switch cancels ACC control |
| 3 |
RES+ switch |
Resumes set speed or increases speed incrementally
- Push and hold the switch to increase the set speed by 5 km/h (5 MPH)
- Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
|
| 4 |
SET- switch |
Sets desired cruise speed or reduces speed incrementally
|
| 5 |
DISTANCE switch |
Changes the following distance from: Long, Middle, Short |

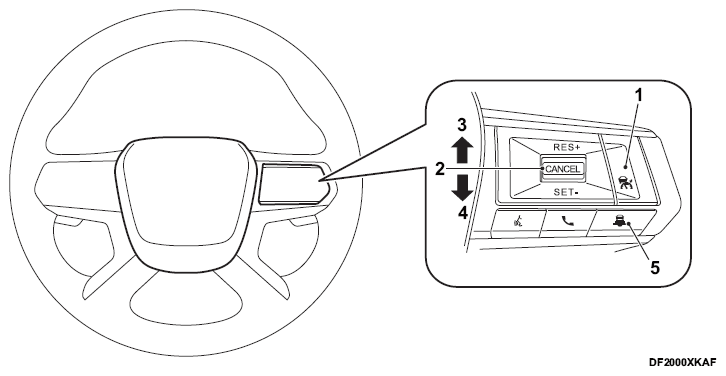

 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
| No. |
Switch name |
Description |
| 1 |
IM PILOT Assist switch |
Turns the MI-PILOT Assist system ON/OFF (press for less than 1.5 seconds) |
| 2 |
CANCEL switch |
Cancels MI-PILOT Assist when the switch is pressed |
| 3 |
RES+ switch |
Resets to the previous set vehicle speed or increases the set speed in steps
- Push and hold the switch to increase the set speed by 5 km/h (5 MPH)
- Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
|
| 4 |
SET- switch |
Sets MI-PILOT Assist at a set speed, or reduces the speed progressively
|
| 5 |
DISTANCE switch |
Each press of the switch changes the vehicle distance setting between "Long", "Medium" or "Short." |
