System Display

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

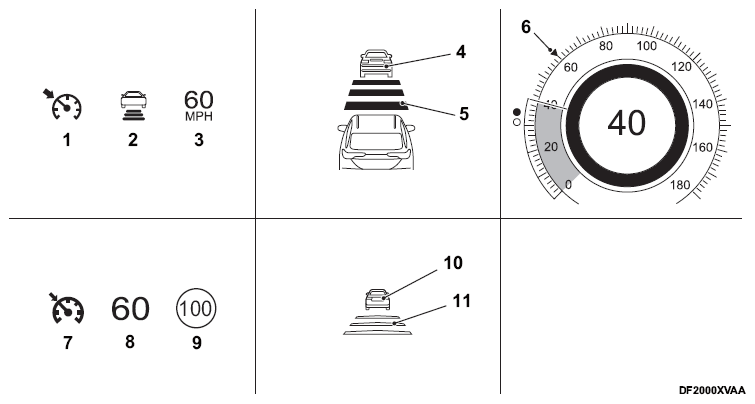

G16317165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
No. Switch name Description
(1) ACC status indicator Indicates the status of ACC system.
(2) Speed control status indicator/warning (Information display) The vehicle speed control status is indicated by different colors and shapes.
(3) Set vehicle speed indicator (Information display)
  • Indicates the set vehicle speed.
  • Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH).
(4) Vehicle ahead detection indicator (Information display) Indicates whether it detects a vehicle ahead.
(5) Set distance indicator (Information display) Indicates the selected distance between vehicles set with the DISTANCE switch.
(6) Vehicle set speed indicator (Information display) Indicates the vehicle set speed
(7) ACC status indicator (Head up display) Displays the status of ACC system.
(8) Set vehicle speed indicator (Head up display)
  • Indicates the set vehicle speed
  • Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
(9) Detected speed limit sign indicator (Head up display) Indicates the currently detected speed limit sign
(10) Vehicle ahead detection indicator (Head up display) Indicates whether it detects a vehicle ahead
(11) Set distance indicator (Head up display) Indicates the selected distance between vehicles set with the DISTANCE switch


G16317165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
No. Switch name Description
(1) MI-PILOT Assist operational display Indicates the MI-PILOT Assist system operational status
(2) Vehicle speed control display/Warning display (Information display) Shows the status of the vehicle speed control with colors and shapes
(3) Shows the set vehicle speed display (Information display)
  • Shows the set vehicle speed
  • Shows 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
(4) Road information display (Information display) The display will change when adjusting the speed according to a curve or an exit.
(5) Speed limit indication display (Information display) Shows the currently detected speed limit sign
(6) Speed limit assist display Shows the speed limit assist status or the system operational status
(7) MI-PILOT Assist operational display This is displayed when the MI-PILOT Assist is activated
(8) Preceding vehicle detection display (Information display) Shows whether or not there is a preceding vehicle
(9) Vehicle distance settings display (Information display) Indicates the selected distance between vehicles set with the vehicle distance setting switch
(10) Set vehicle speed display (Information display) Shows the set vehicle speed
(11) MI-PILOT Assist operational display (head up display) Shows the speed limit assist status or the system operational status
(12) Set vehicle speed display (head up display)
  • Shows the set vehicle speed
  • Shows 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
(13) Speed limit indication display (head up display) Shows the currently detected speed limit sign
(14) Preceding vehicle detected display (head up display) Shows whether or not there is a preceding vehicle
(15) Vehicle distance setting display (head up display) Indicates the selected distance between vehicles set with the vehicle distance setting switch
