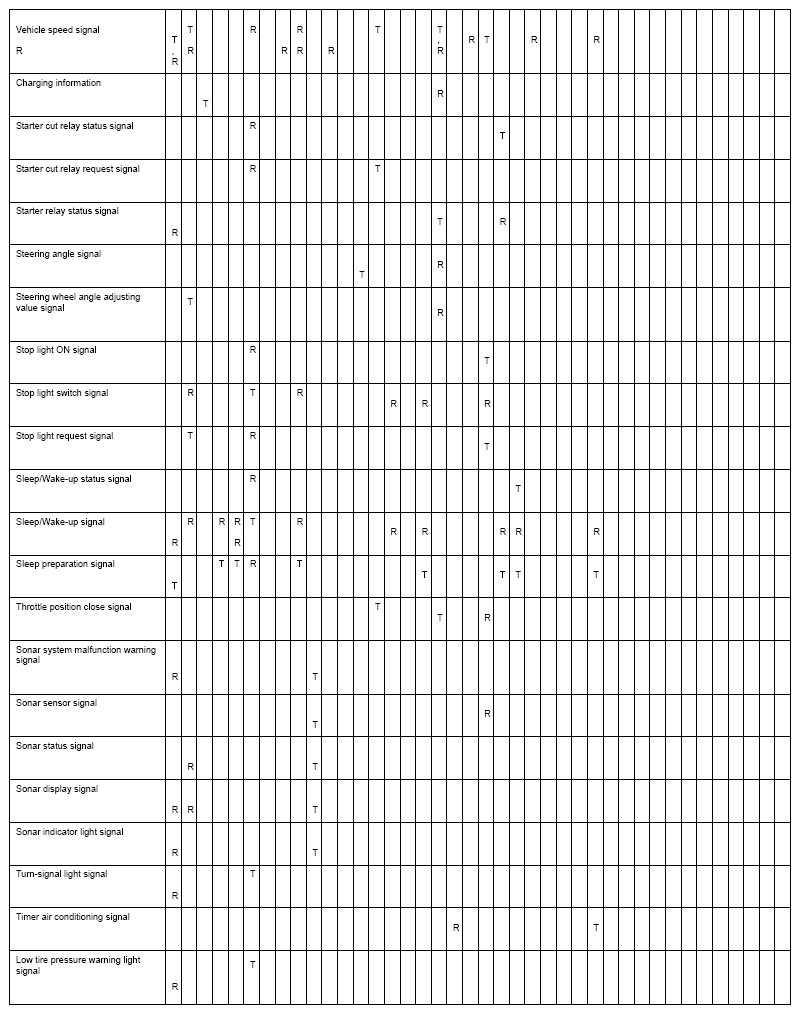

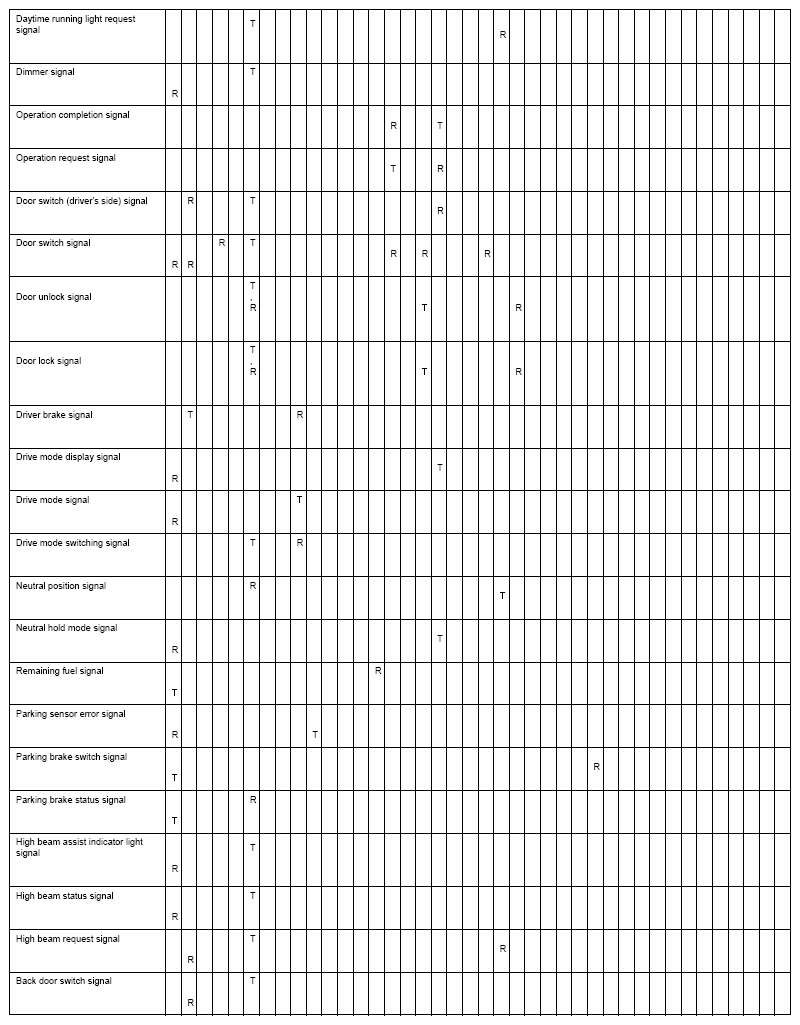

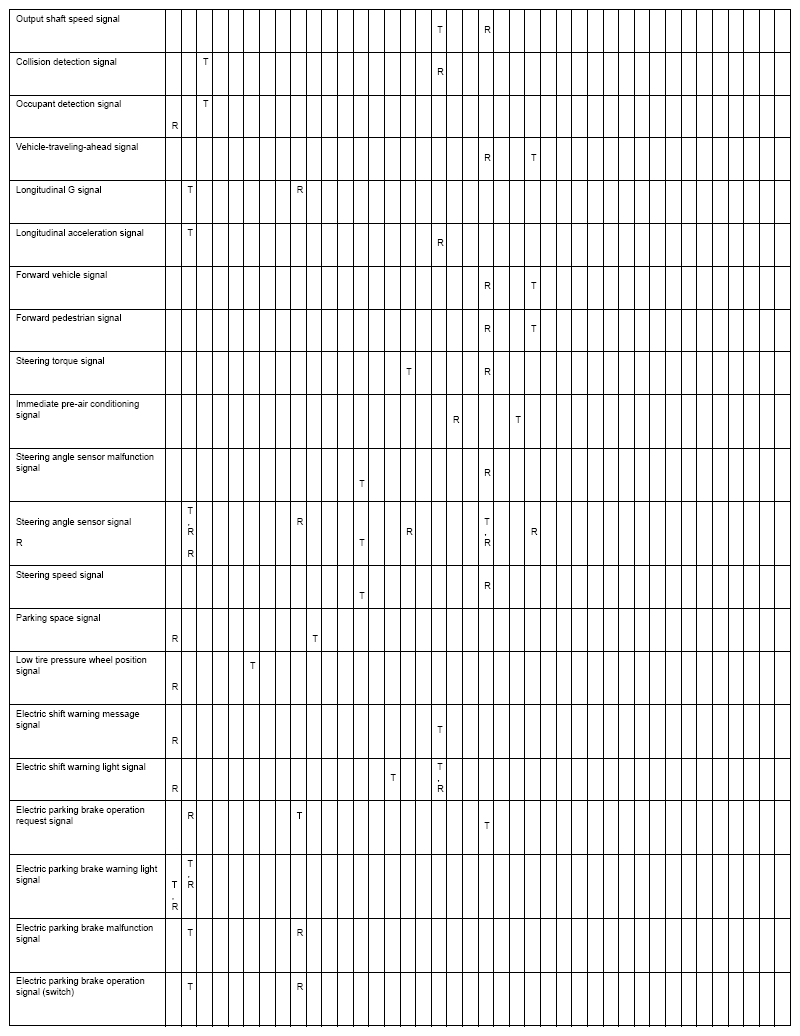

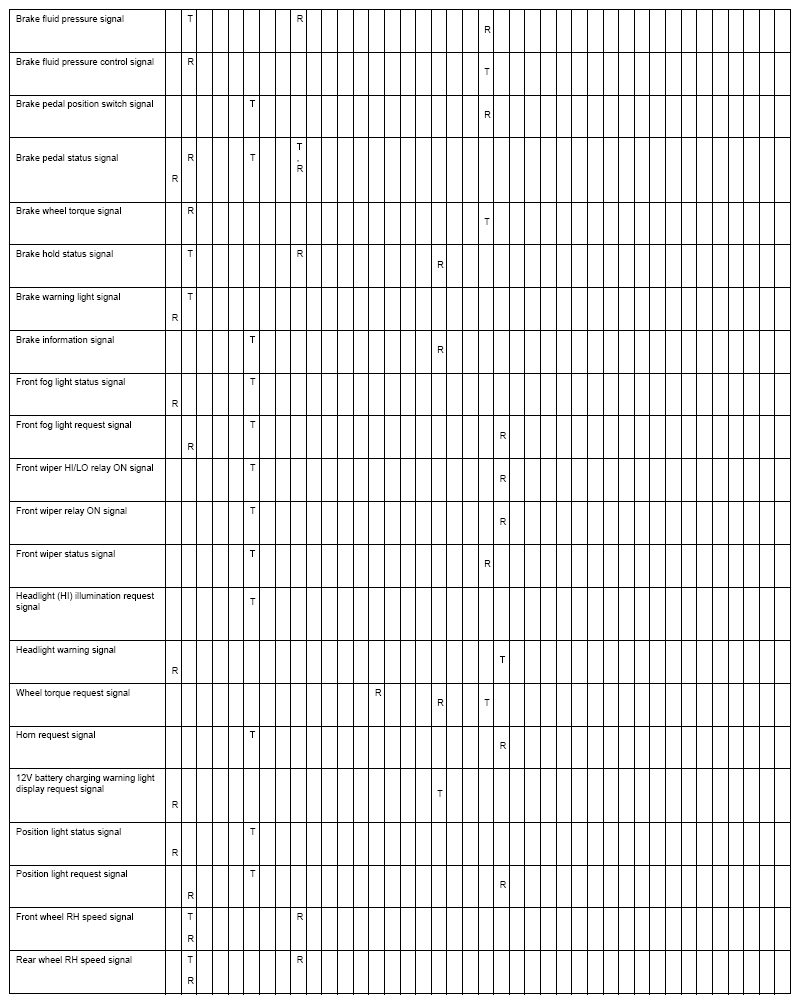

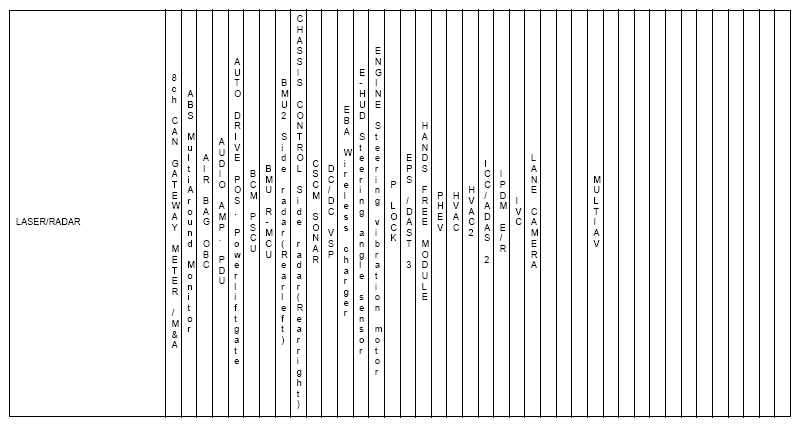

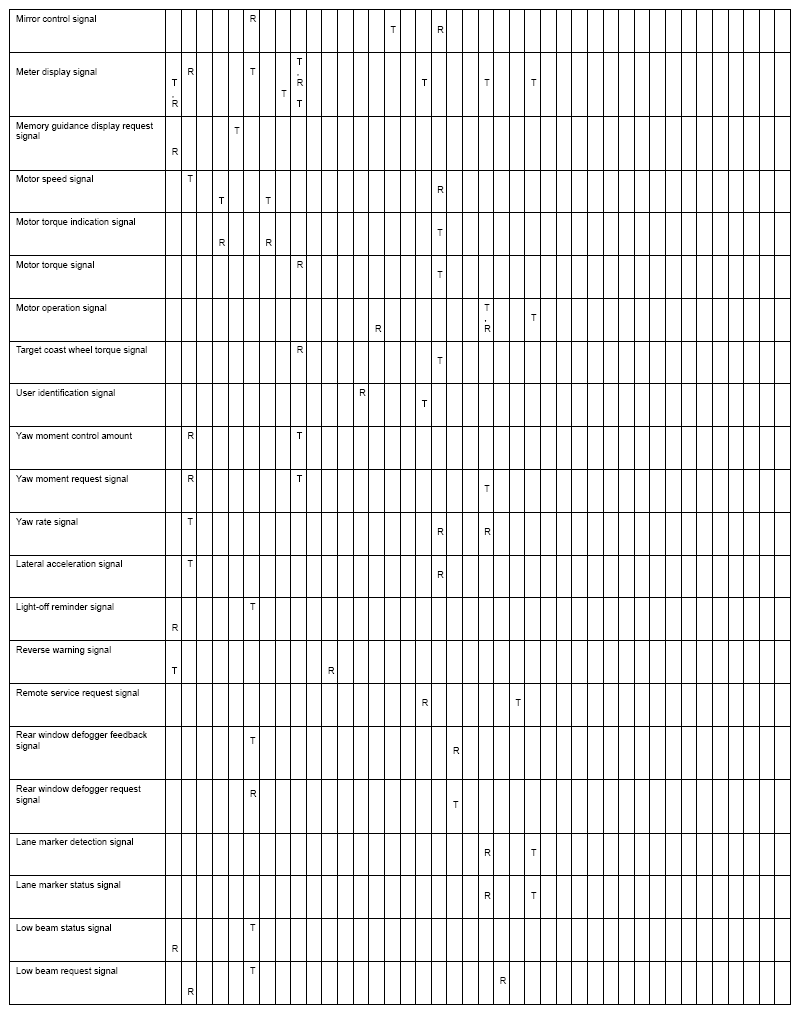

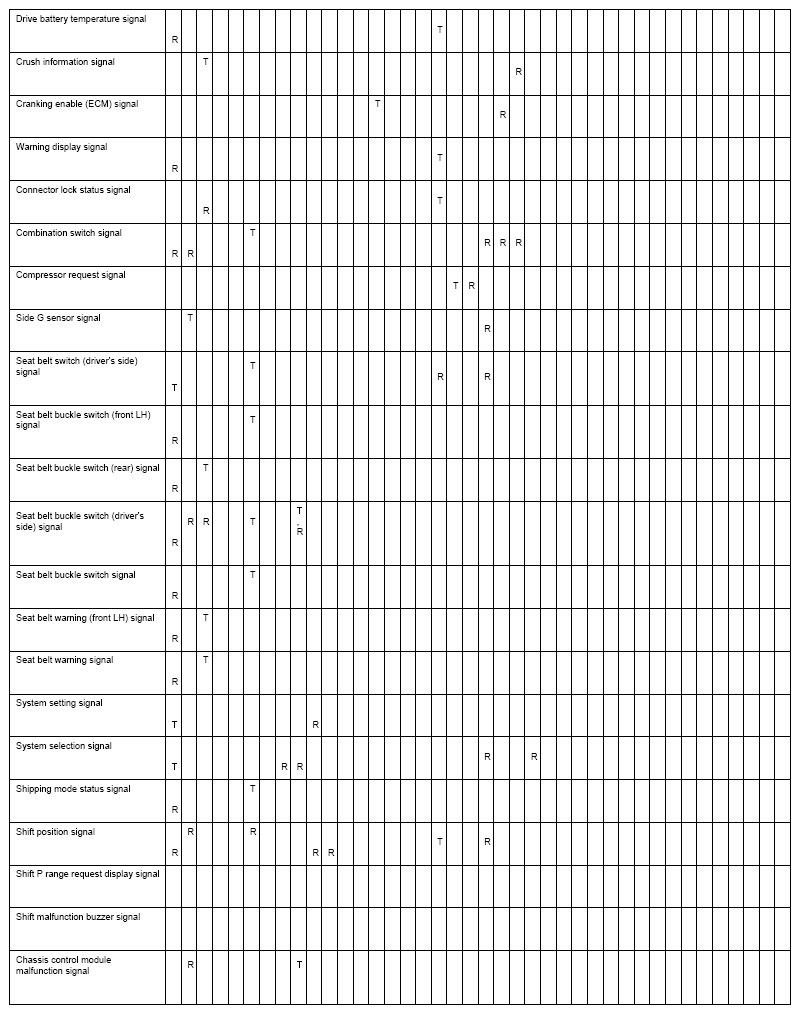

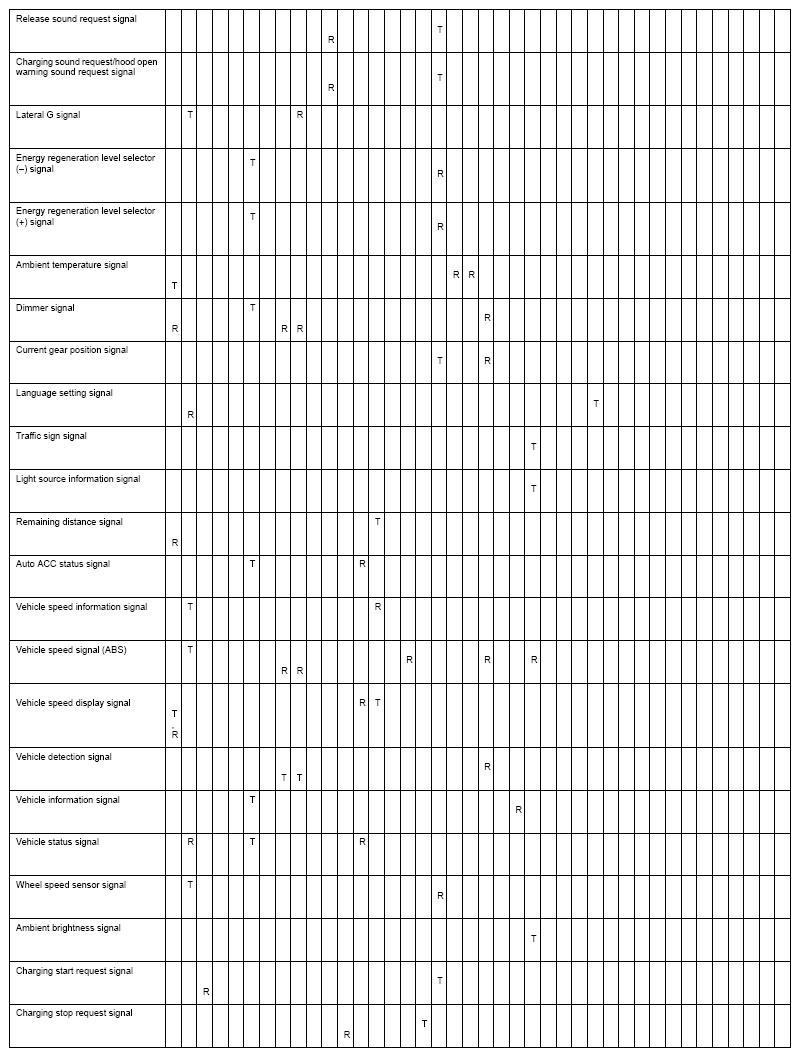

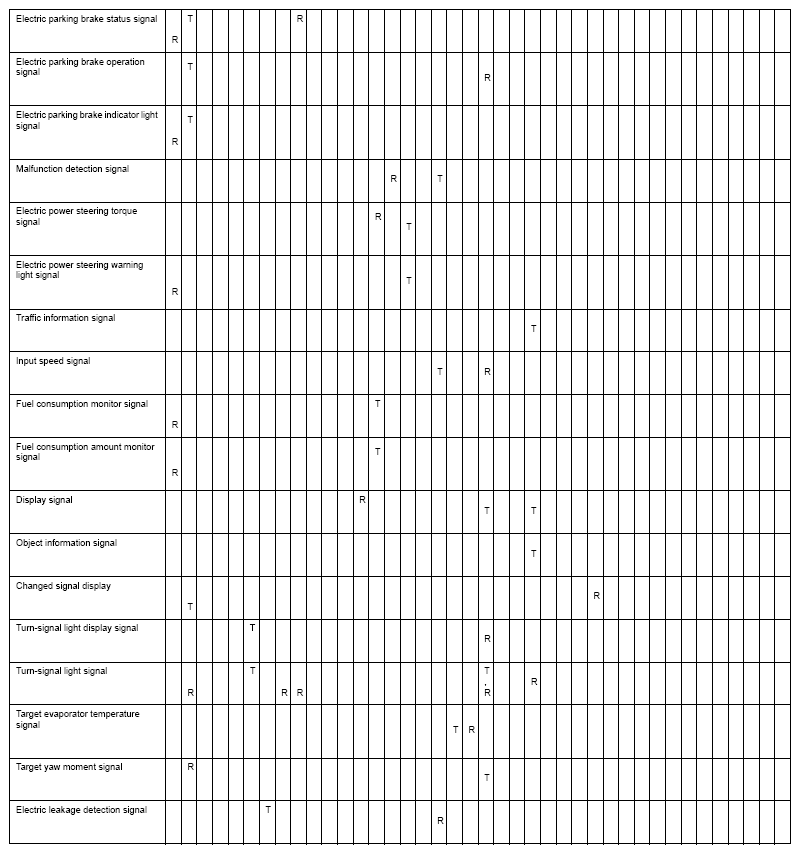

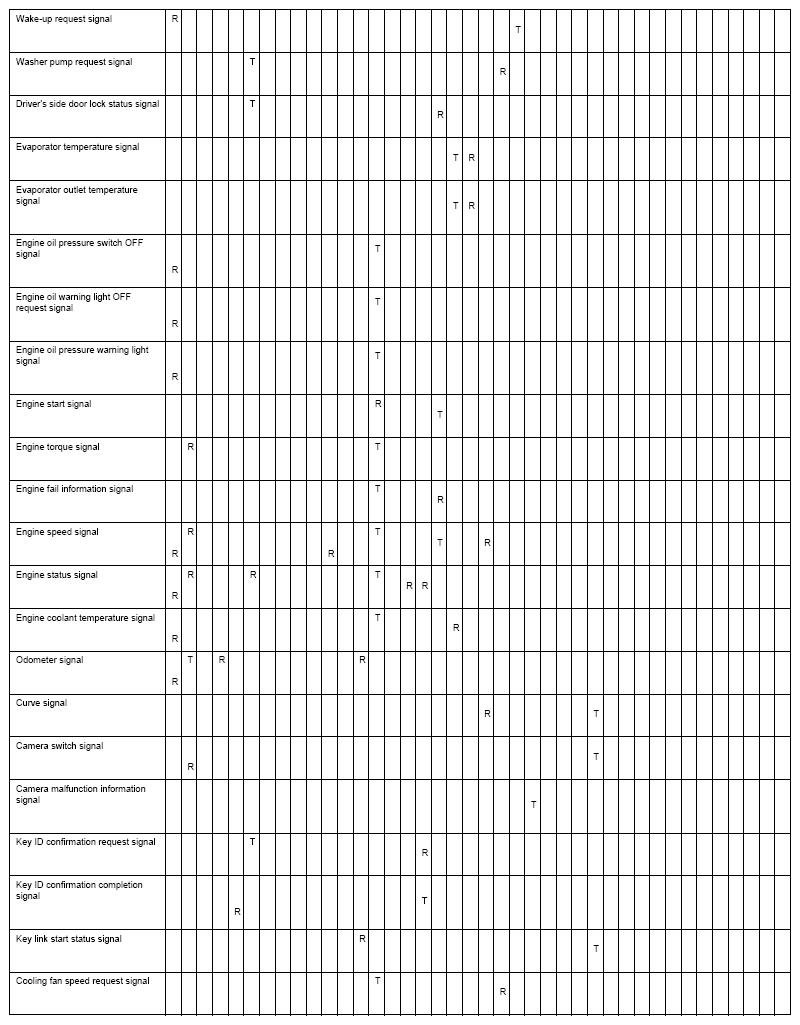

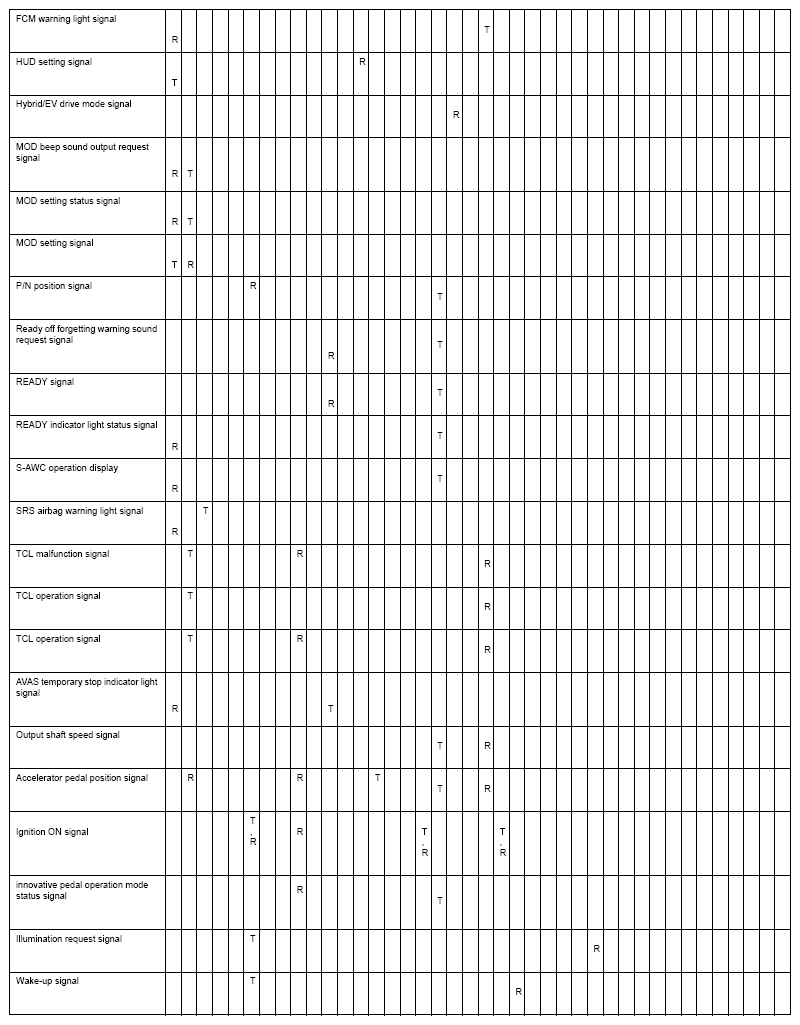

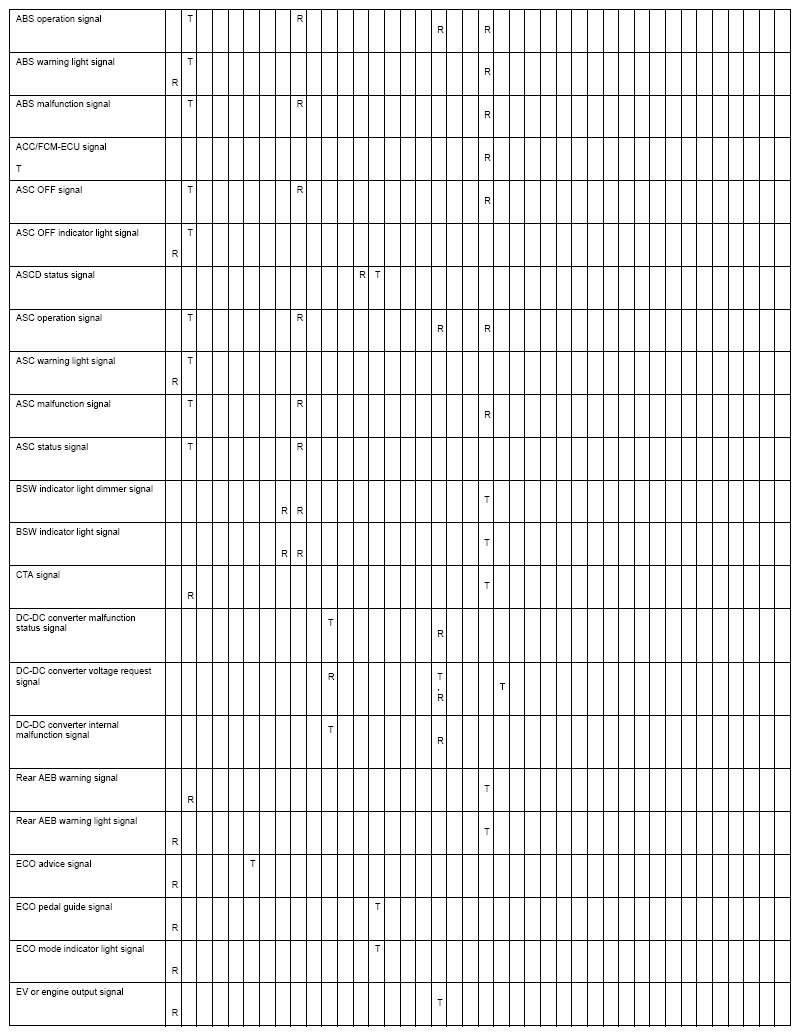

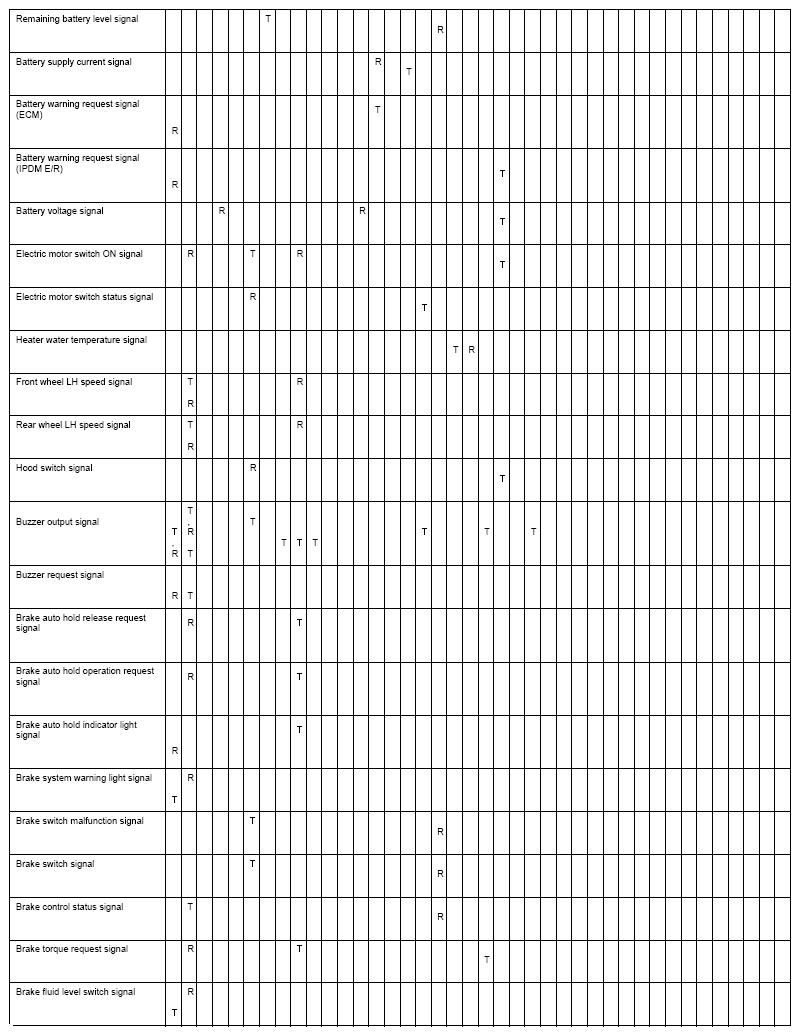

CAN Communication Signal Chart

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Refer to HOW TO USE CAN COMMUNICATION SIGNAL CHART for how to use CAN communication signal chart.

NOTE: Refer to PERMUTATION TABLE IN M.U.T.-III SE SYSTEM NAMES or the abbreviations of the connecting units.
