Removal And Installation
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
Pre-removal and Post-installation Operation
Luggage side lower finisher (RH) removal and installation
(Refer to Body Interior - Interior Trim REMOVAL AND INSTALLATION )

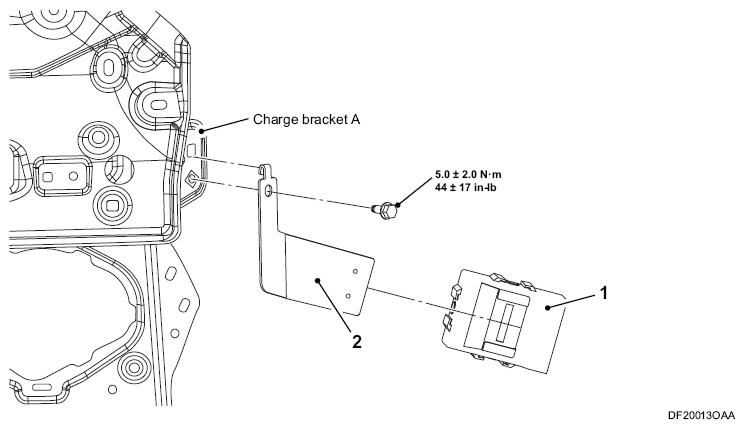

Fig 1: Removing/Installing Charge Station Communication Module Components Location With Torque Specification
Removal steps
- Charging equipment communication module
- Charging equipment communication module bracket
