Transaxle Fluid Level Inspection

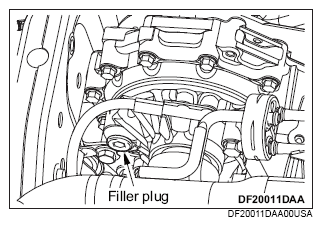

- Remove the filler plug and gasket.
- Check that the fluid level is just below the lower edge of the filler plug hole.
- Check that the fluid is not excessively foul and has moderate viscosity.
- If the level is below the filler plug hole, add the specified fluid up to the lower edge of the filler plug hole.
Brand name: MITSUBISHI MOTORS GENUINE ATF SP III
- Install the filler plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N m (24 ± 1 ft-lb)
