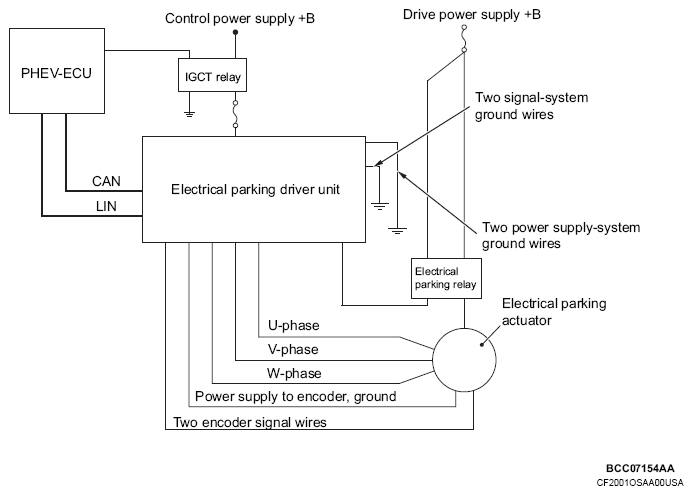

Control System Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• CONTROLLER AREA NETWORK (CAN) COMMUNICATION

  CAN communication is used for more reliable data transmission. For details of CAN, refer to ELECTRICAL & POWER SYSTEM - LAN SYSTEM SYSTEM DESCRIPTION .

• LOCAL INTERCONNECT NETWORK (LIN) COMMUNICATION

A LIN communication is used as backup for the CAN communication.
