Removal And Installation: Notes
Pre-removal and post-installation operation
- Quarter trim upper removal and installation (Refer to INTERIOR TRIM .)
| Removal steps | |||

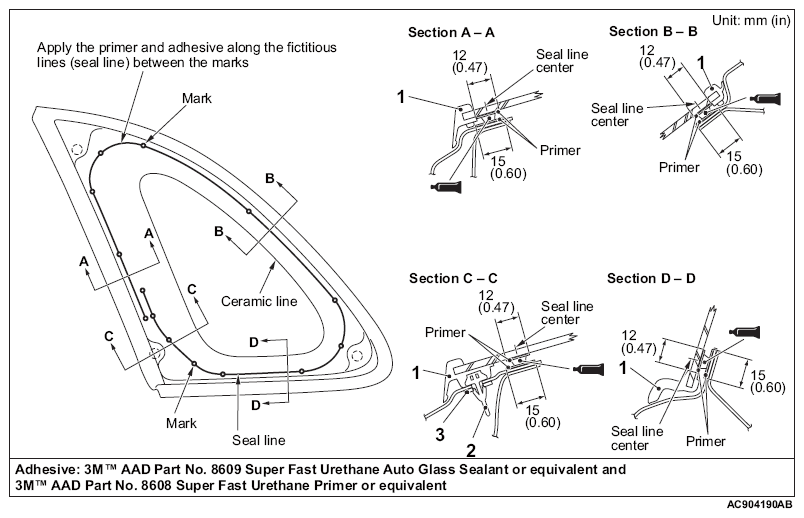

| <<A>> | >>A<< | 1. | Quarter window glass assembly |
| 2. | Clip | ||
| 3. | Gasket | ||
Pre-removal and post-installation operation
| Removal steps | |||
| <<A>> | >>A<< | 1. | Quarter window glass assembly |
| 2. | Clip | ||
| 3. | Gasket | ||
