Removal And Installation

Pre-removal and post-installation operation

Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).

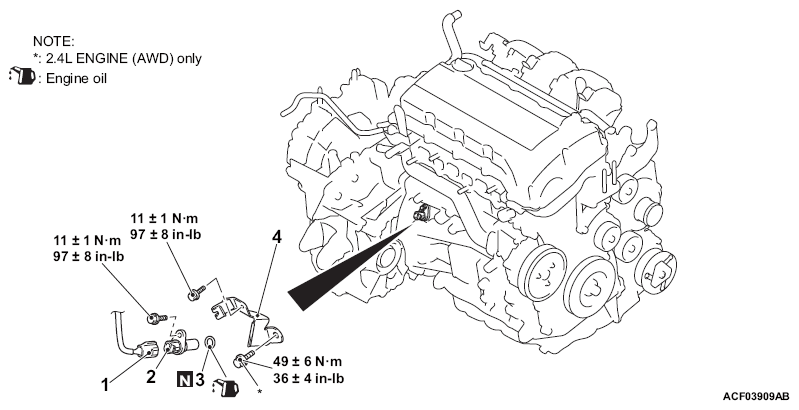

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
1.	Crankshaft position sensor connector
2.	Crankshaft position sensor
3.	O-ring
•	Exhaust manifold bracket <2.0L ENGINE> or Exhaust manifold bracket B <2.4L ENGINE (FWD)> (Refer to EXHAUST MANIFOLD ).
4.	Crankshaft position sensor cover
