Removal And Installation: Notes
CAUTION:
Whenever you removal the windshield, calibrate its sensor (Refer to GROUP 54A - FCM/LDW/AHB-ECU - On-vehicle Service, FCM/LDW/AHB-ECU Sensor Calibration FCM/LDW/AHB-ECU SENSOR CALIBRATION
) <Vehicles with FCM>.
Pre-removal and Post-installation Operation
- Front Deck Garnish Removal and Installation (Refer to GROUP 51, WINDSHIELD WIPER ).
- Roof Drip Molding Removal and Installation (Refer to GROUP 51, Molding ).
- Front Pillar Trim Removal and Installation (Refer to GROUP 52A, INTERIOR TRIM ).
- Inside Rear View Mirror Assembly Removal and Installation (Refer to GROUP 52A, INSIDE REAR VIEW MIRROR ).
- Lighting Control Sensor Removal and Installation <Vehicles with Lighting Control Sensor> (Refer to GROUP 54A, LIGHTING CONTROL SENSOR ).
- FCM/LDW/AHB-ECU Removal and Installation <Vehicles with FCM> (Refer to GROUP 54A, FCM/LDW/AHB-ECU ).

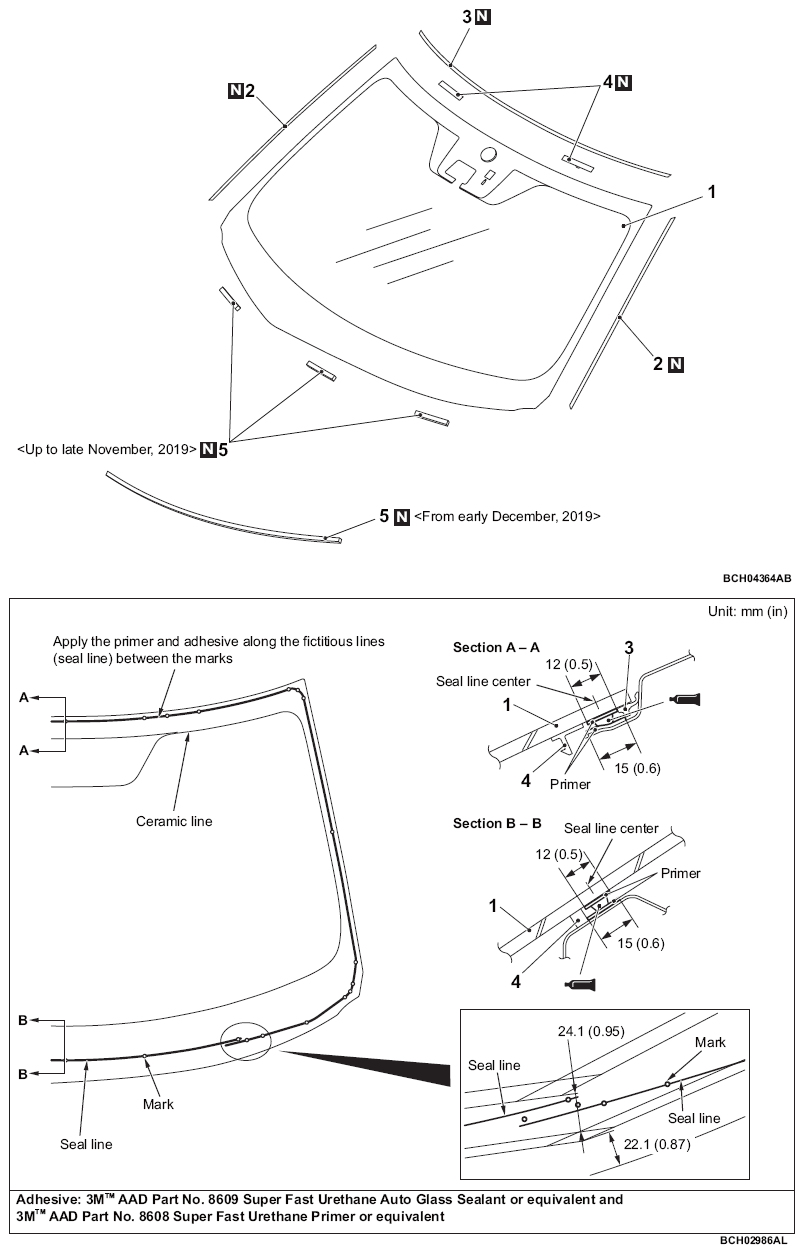

| Removal steps | |||
|---|---|---|---|
| <<A>> | >>B<< | 1. | Windshield glass |
| 2. | Windshield side molding | ||
| 3. | Windshield upper molding | ||
| >>A<< | 4. | Glass stopper | |
| >>A<< | 5. | Windshield spacer | |
