Disassembly And Reassembly: Notes
CAUTION:
As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.

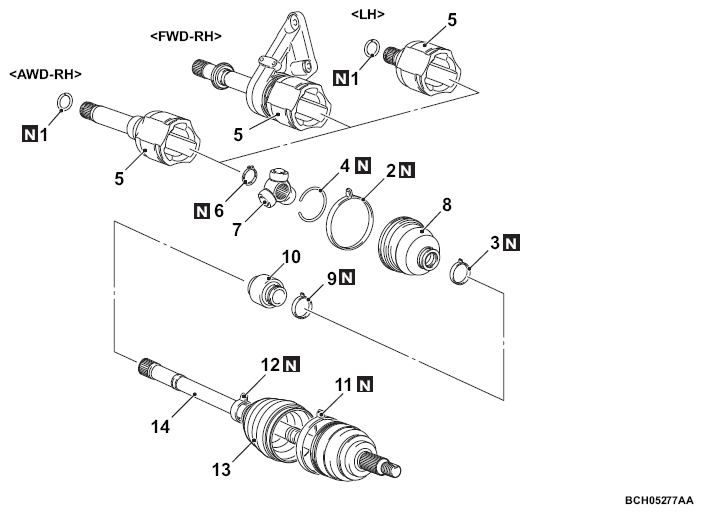

| Disassembly steps | |||
|---|---|---|---|
| 1. | Circlip | ||
| >>D<< | 2. | Inboard joint boot band (large) | |
| >>D<< | 3. | Inboard joint boot band (small) | |
| 4. | Circlip | ||
| <<A>> | >>C<< | 5. | Inboard joint case |
| 6. | Snap ring | ||
| >>C<< | 7. | Spider assembly | |
| <<B>> | >>B<< | 8. | Inboard joint boot |
| >>A<< | 9. | Damper band <Vehicles with dynamic damper> | |
| >>A<< | 10. | Dynamic damper <Vehicles with dynamic damper> | |
| 11. | Outboard joint boot band (large) | ||
| 12. | Outboard joint boot band (small) | ||
| 13. | Outboard joint boot | ||
| 14. | Outboard joint assembly | ||
