Removal And Installation: Notes

CAUTION:

The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the driveshaft assembly, make sure that the wheel speed detection magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.

Pre-removal operation	Post-installation operation
Engine Room Under Cover Rear Removal (Refer to UNDER COVER ). CVT fluid draining (Refer to On-vehicle Service, CVT Fluid Change TRANSMISSION FLUID CHANGE ).	CVT fluid refilling (Refer to On-vehicle Service, CVT Fluid Change TRANSMISSION FLUID CHANGE ). Engine Room Under Cover Rear Installation (Refer to UNDER COVER ). Using your fingers, press the ball joint dust cover to check for a crack or damage.

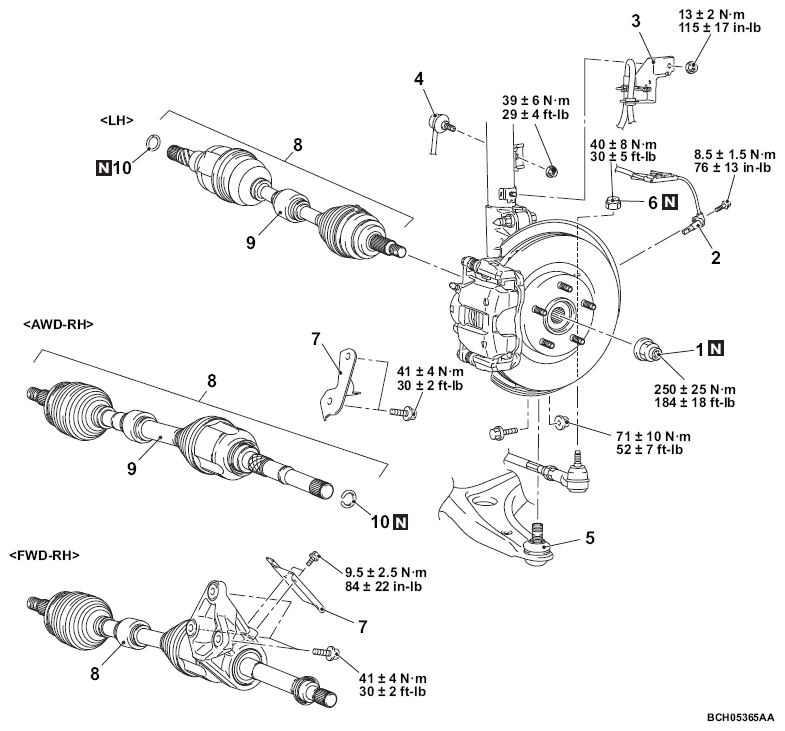

Fig 1: Removing/Installing Driveshaft Assembly Components Location With Torque Specification

G16566273

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	>>C<<	1.	Driveshaft nut
		2.	Front wheel speed sensor
		3.	Brake hose bracket
<<B>>	>>B<<	4.	Stabilizer link connection
		5.	Lower arm ball joint connection
<<C>>		6.	Self-locking nut (tie-rod end connection)
		7.	Heat protector
		•	Catalytic converter bracket (Refer to EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER .) <FWD-RH>
<<D>>	>>A<<	8.	Driveshaft assembly
		9.	Driveshaft
		10.	Circlip

Required Special Tools:

MB992700: Lock nut chisel
MB990767: Front Hub and Flange Yoke Holder
MB991897 or MB992011: Ball Joint Remover
MB990242: Puller shaft
MB990244: Puller bar
MB990767: Front hub and flange yoke holder
MB991354: Puller body
MB991000: Spacer
MB990998: Front hub remover and installer
