Removal And Installation: Notes

Pre-removal operation	Post-installation operation
Engine Cover Removal (Refer to ENGINE COVER ). Charge air cooler Intake Air Hose A Removal (Refer to CHARGE AIR COOLER  ). Air Cleaner Assembly Removal (Refer to AIR CLEANER  ). Throttle Body Removal (Refer to Throttle Body REMOVAL AND INSTALLATION ). Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR ).	Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR ). Throttle Body Installation (Refer to Throttle Body REMOVAL AND INSTALLATION ). Air Cleaner Assembly Installation (Refer to AIR CLEANER  ). Charge air cooler Intake Air Hose A Installation (Refer to CHARGE AIR COOLER  ) Engine Cover Installation (Refer to ENGINE COVER ).

NOTE: *: Mounting bolt (One bolt or two bolts)

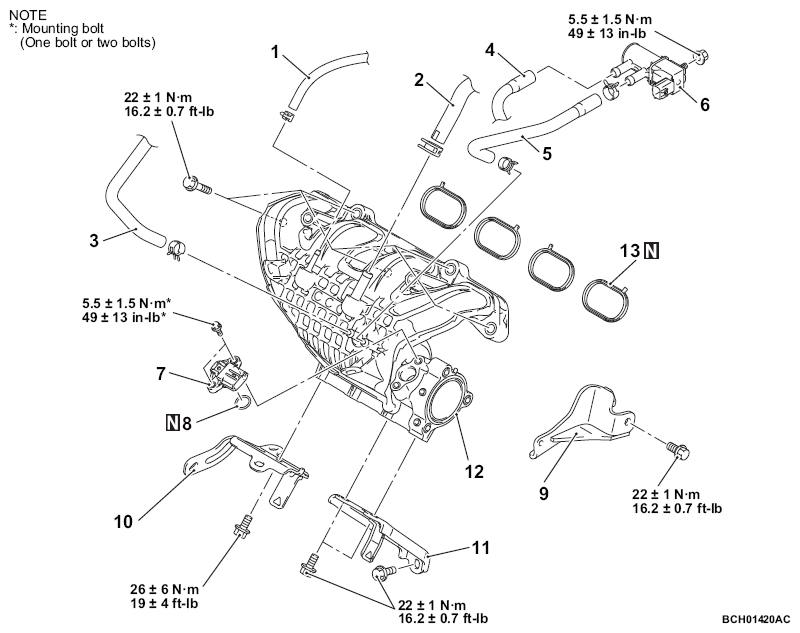

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	1.	Air by-pass valve vacuum hose
	2.	connection Brake booster vacuum hose
	3.	connection Rocker cover PCV hose connection
	4.	Purge hose canister connection
	5.	Purge hose intake manifold
	6.	connection Purge control solenoid valve
>>B<<	7.	Manifold absolute pressure sensor
>>B<<	8.	O-ring
	9.	Throttle body stay
	10.	Harness bracket
>>A<<	11.	Intake manifold stay
>>A<<	12.	Intake manifold
	13.	Gasket
