Disassembly And Reassembly: Notes

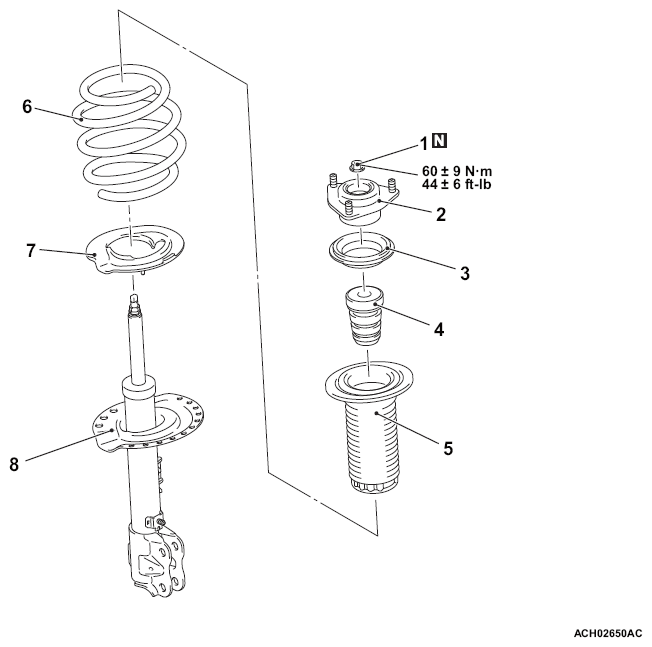

Fig 1: Disassembling/Reassembling Strut Assembly Components Location With Torque Specification

G16566490

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Disassembly steps
<<A>>	>>E<<	1.	Strut nut (Self-locking nut)
	>>D<<	2.	Strut insulator assembly
	>>C<<	3.	Strut bearing
	>>B<<	4.	Bump stopper
		5.	Upper spring pad
	>>A<<	6.	Coil spring
		7.	Lower spring pad
<<B>>		8.	Strut

Required Special Tools:

MB991681: Wrench
MB991682: Socket
MB991793: Spring compressor
MB991794: Upper plate
MB991795: Attachment A
MB991830: Fixture
