>>B<< Transaxle Control Cable Installation
- Move the selector lever to the "N" range.
- Move the manual control lever to Neutral position.

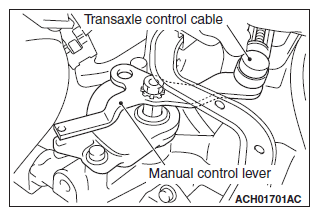

- Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).NOTE: Insert a 5 bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.
- Attach the transaxle control cable to the manual control lever.
- Make sure that the transaxle side ranges that are corresponding to the selector lever position operate and function without fail.
